Double layer ibr machine effective width 686 and 762
Model: HX- IBR machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description
Double layer ibr machine effective width 686 and 762

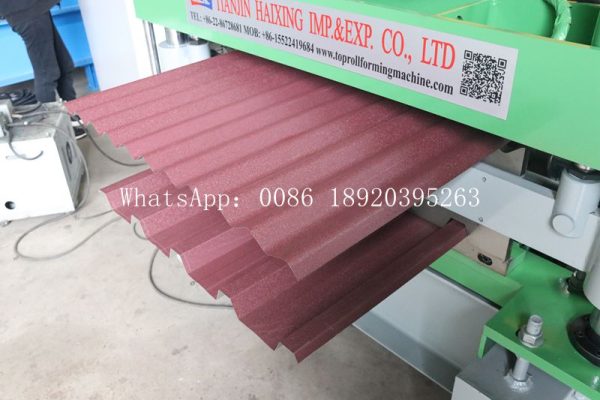

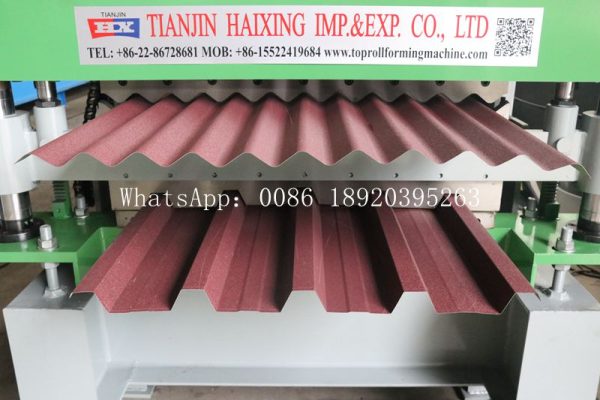

This ibr machine is double layered and can produce trapezoidal roofs and corrugated roofs.
Advantages:
One machine can produce two types of roofs, saving space and purchase costs of the machine.

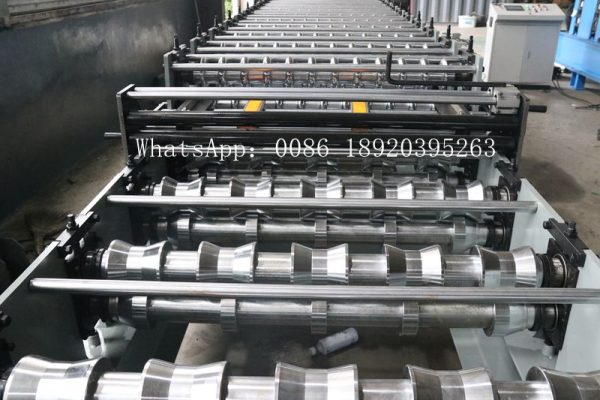

The wheels of the machine are 45# steel with chrome plating, high hardness, good wear resistance, long service life and not easy to rust.
Double layer ibr machine effective width 686 and 762 specification paration: | |
| Raw materials width | 1250mm/1220mm/1200mm/1000mm |
| Power | 3-5.5Kw |
| Roll station number | 11-20 steps |
| Thickness of the coil | 0.3-0.8mm |
| Productivity | 10-15m/min |
| Diameter of shaft | 70mm |
| Main Shaft Material | 45# steel with finish turning |
| Roller materials | 45# Forging Steel with Chromium Plate |
| Machine Main Frame | 300-450 H beams |
| Hydraulic pressure | 18-20Mpa |
| Raw materials | PPGI PPGL GI GL |
Size Chart of ibr machine：
Name | Length | Width | Height | Weight |
Size | 9800mm | 2000mm | 1800mm | 7000KGS |
1. Installation and training:
a.If buyers visit our factory and check the ibr roll forming machine for sale , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
ibr machine packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
