ibr manufacturing machine
Model: HX- IBR roof sheet machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

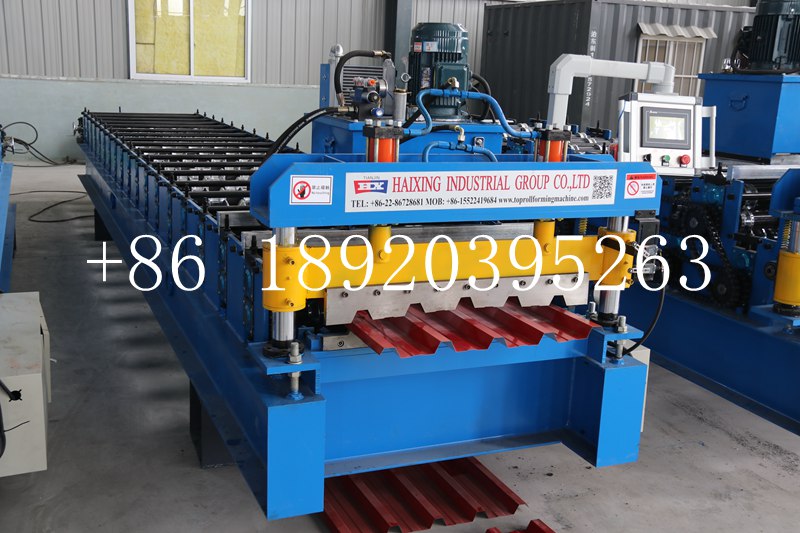

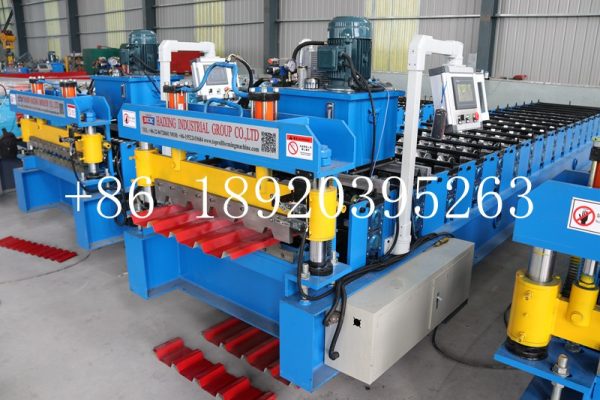

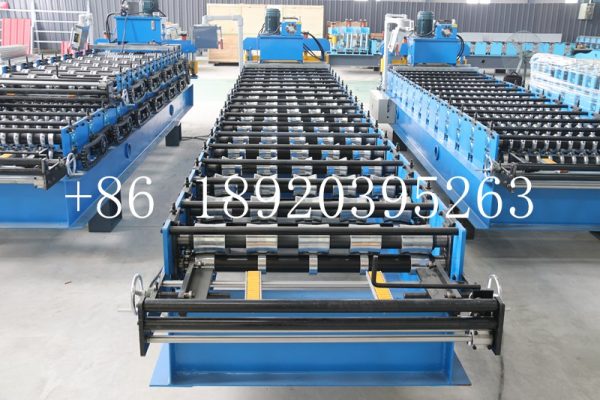

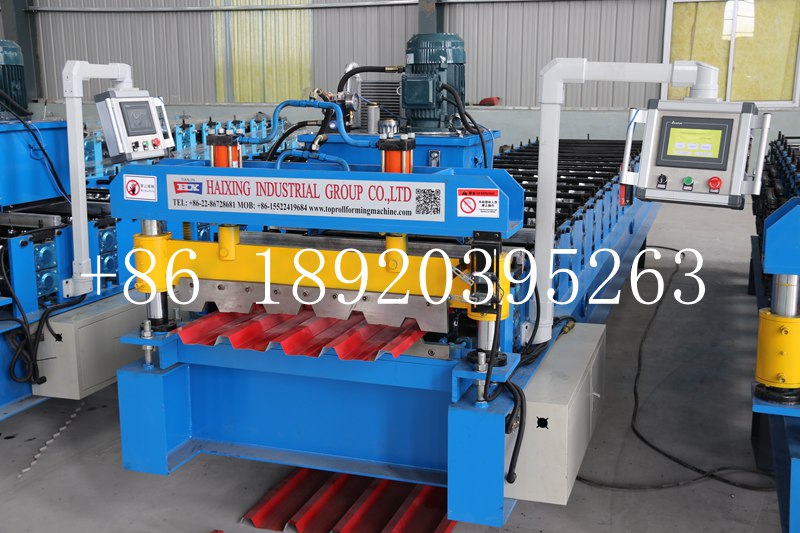

ibr manufacturing machine

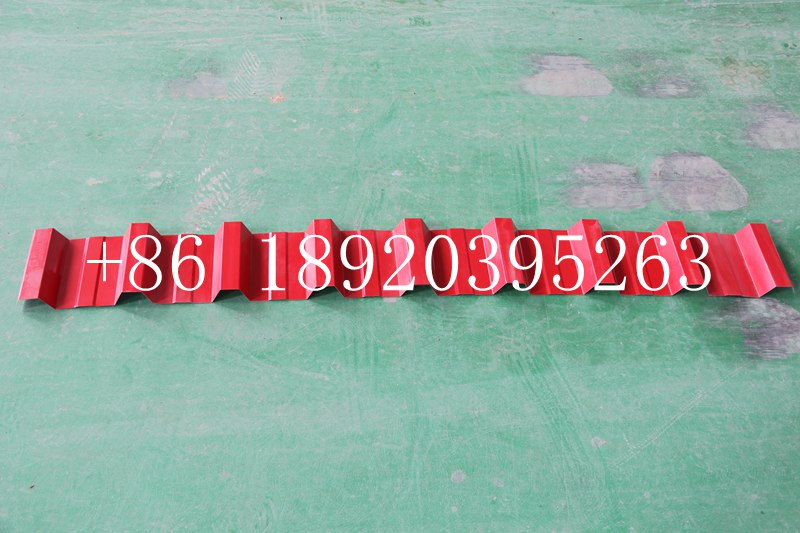

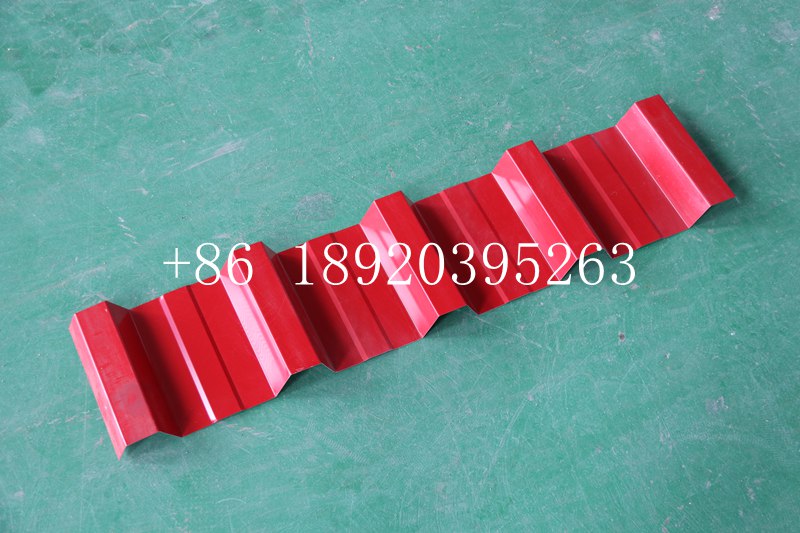

ibr manufacturing machine is a mechanical device used to manufacture various types of metal tiles. It has several advantages:
Low production cost: The production cost of the tile press is relatively low, so it can produce more competitive metal tile products on the basis of stable quality.
Customizable: The production process and parameters of the tile press can be customized according to customer needs, thereby producing metal tiles that meet customer needs.
ibr manufacturing machine specification paration:
Raw materials width | 925mm |
Power | 3-5.5Kw |
Roll station number | 11-20 steps |
Thickness of the coil | 0.28-0.8mm |
Productivity | 10-15m/min |
Diameter of shaft | 70mm |
Main Shaft Material | 45# steel with finish turning |
Roller materials | 45# Forging Steel with Chromium Plate |
Machine Main Frame | 300-450 H beams |
Hydraulic pressure | 18-20Mpa |
Raw materials | PPGI PPGL GI GL |
Size Chart of ibr manufacturing machine：
Name | Length | Width | Height | Weight |
Size | 9800mm | 2000mm | 1800mm | 7000KGS |
1. Installation and training:
a.If buyers visit our factory and check the ibr manufacturing machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.

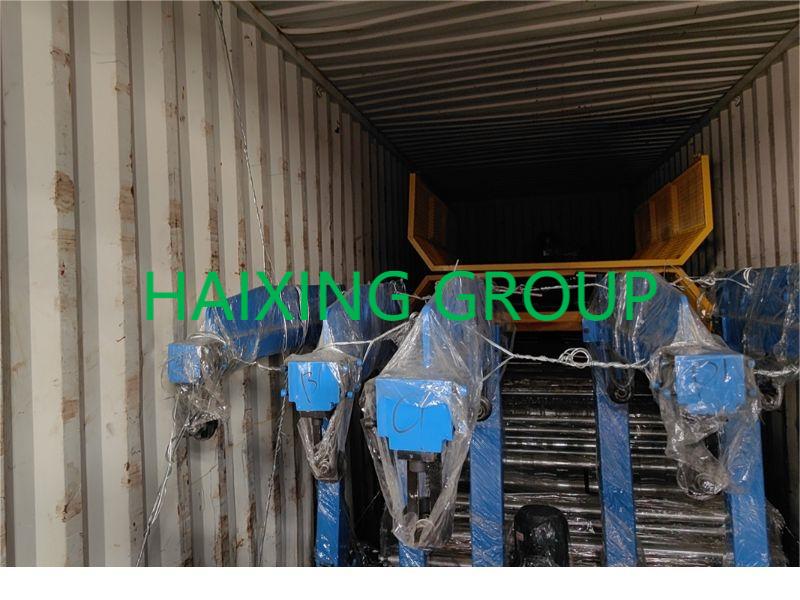

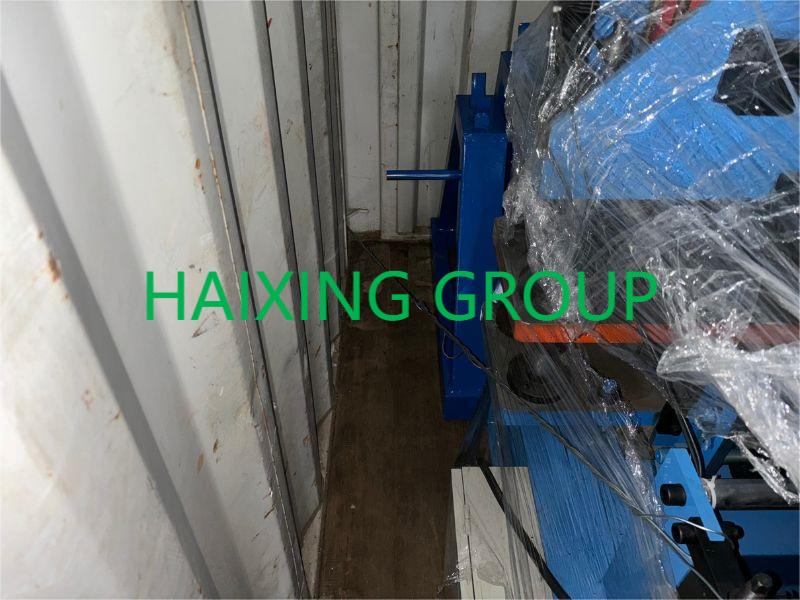

ibr manufacturing machine packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
