roof sheet ibr profile making machine south africa
Model: HX- Double layer machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

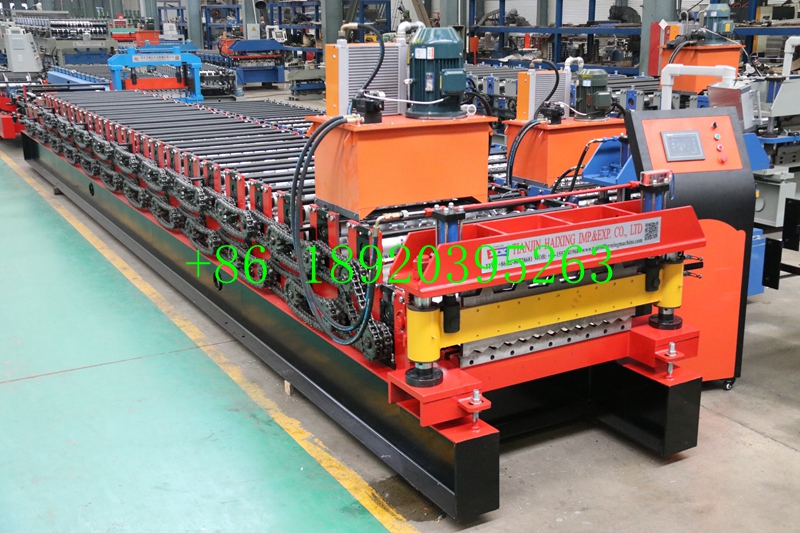

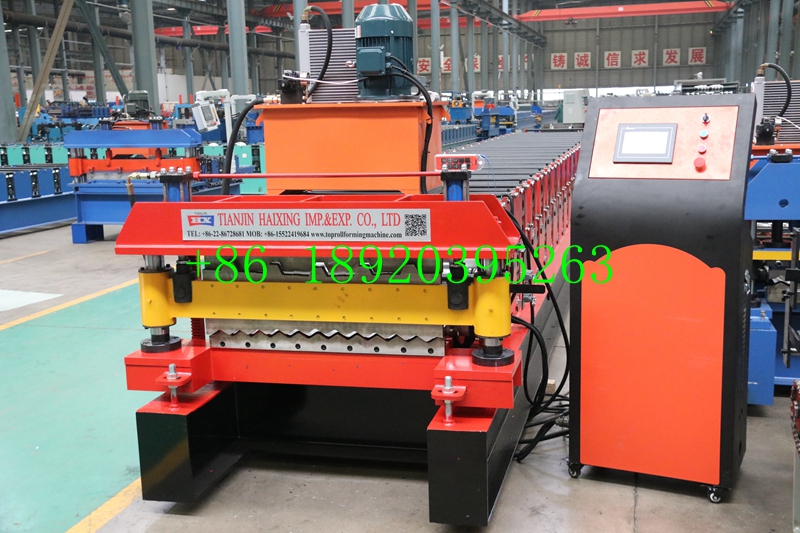

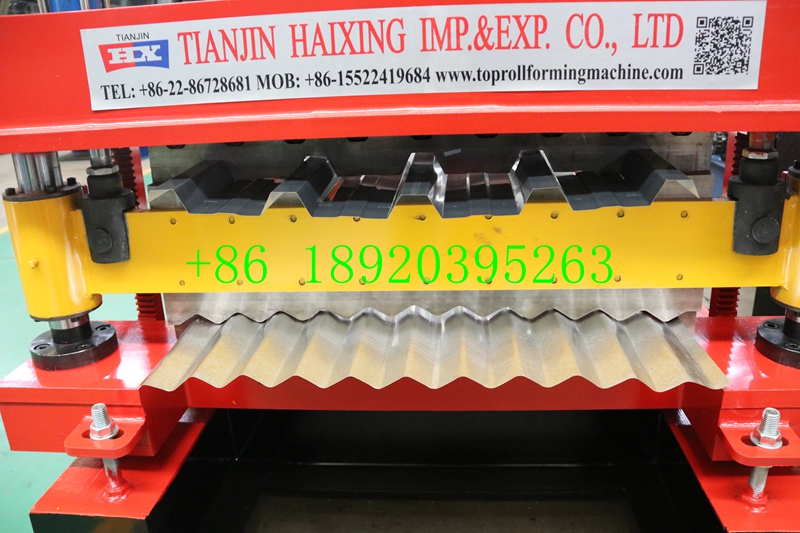

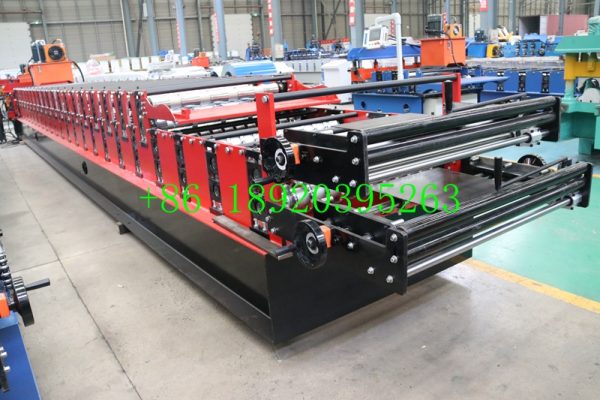

roof sheet ibr profile making machine south africa
roof sheet ibr profile making machine south africa is a mechanical device used to manufacture various types of metal tiles. It has several advantages：
1. Operational safety: The tile press adopts a fully automatic control system, which can automatically start and stop, reducing the risk factor for operators.
2. Fast delivery: The tile press has a short production cycle and can be delivered in time to meet the urgent needs of customers.
roof sheet ibr profile making machine south africa specification paration:
Raw materials width | 925mm |
Power | 3-5.5Kw |
Roll station number | 11-20 steps |
Thickness of the coil | 0.28-0.8mm |
Productivity | 10-15m/min |
Diameter of shaft | 70mm |
Main Shaft Material | 45# steel with finish turning |

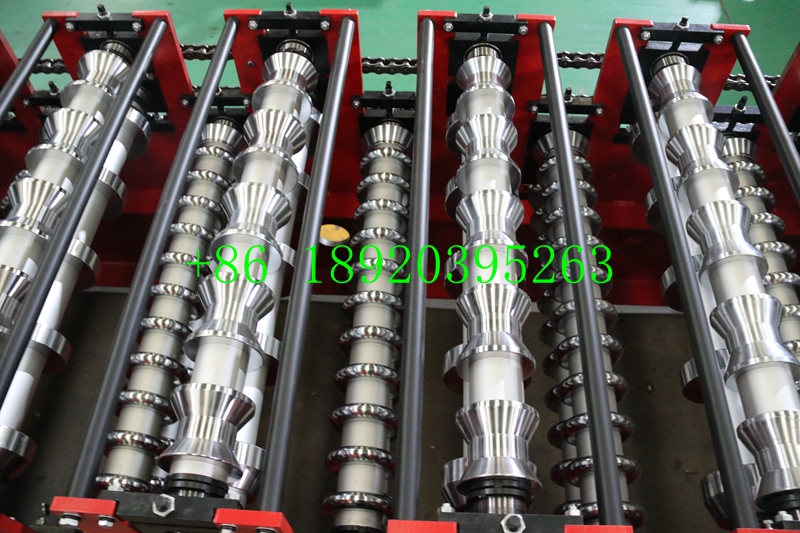

Roller materials | 45# Forging Steel with Chromium Plate |
Machine Main Frame | 300-450 H beams |
Hydraulic pressure | 18-20Mpa |
Raw materials | PPGI PPGL GI GL |
Size Chart of roof sheet ibr profile making machine south africa：
Name | Length | Width | Height | Weight |
Size | 9800mm | 2000mm | 1800mm | 7000KGS |
1. Installation and training:
a.If buyers visit our factory and check the roof sheet ibr profile making machine south africa , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
roof sheet ibr profile making machine south africa packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
our other product :
We have roof and wall roll forming machine, light steel keel roll forming machine,purlin roll forming machine,ridge cap roll forming machine,floor deck roll forming machine,leveling and slitting production line,bending machine,shearing machine,decoiler machine,stacker,downspout & rain gutter roll forming machine,shutter door roll forming machine,door frame roll forming machine,window frame machine,embossing machine etc.
