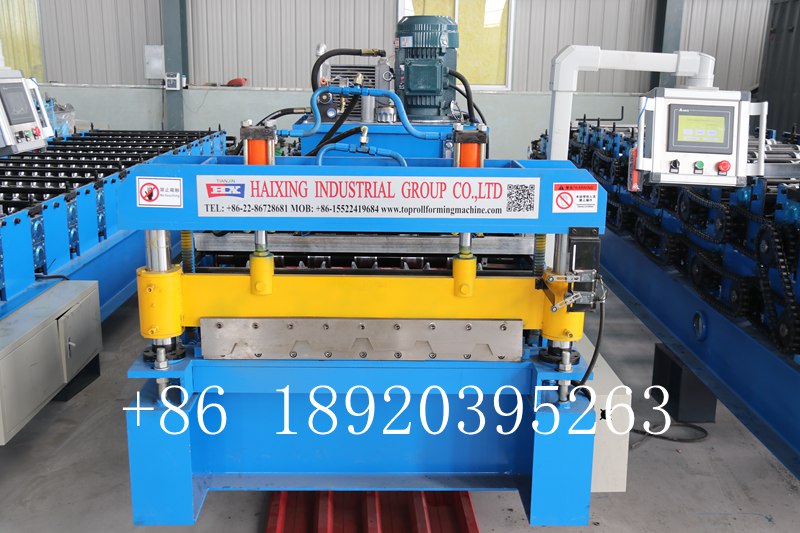

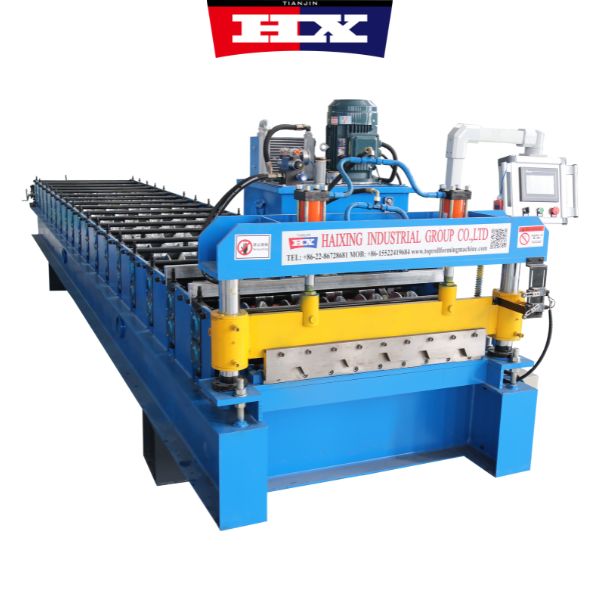

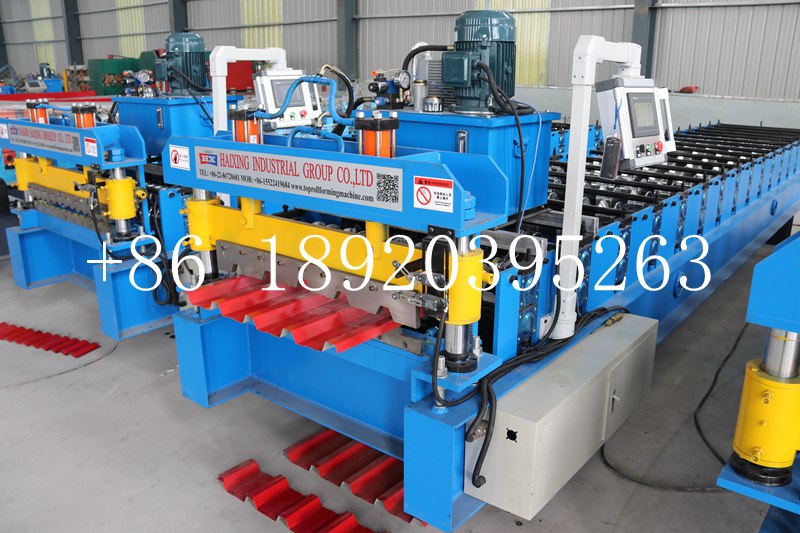

ibr metal roll forming machine
Model: HX- ibr machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description
ibr metal roll forming machine
ibr metal roll forming machine is a mechanical device used to manufacture various types of metal tiles. It has several advantages：
1. High-precision design: The tile press adopts high-precision design technology, which makes the manufactured corrugated plates precise in size and regular in geometric shape, making them more beautiful and practical.
2. High product reliability: The corrugated boards produced by the tile press machine have no gaps or oxidation, are highly dense, and have good waterproof, fireproof, and sound insulation capabilities.
ibr metal roll forming machine specification paration:
Raw materials width | 925mm |
Power | 3-5.5Kw |
Roll station number | 11-20 steps |
Thickness of the coil | 0.28-0.8mm |
Productivity | 10-15m/min |
Diameter of shaft | 70mm |
Main Shaft Material | 45# steel with finish turning |
Roller materials | 45# Forging Steel with Chromium Plate |
Machine Main Frame | 300-450 H beams |
Hydraulic pressure | 18-20Mpa |
Raw materials | PPGI PPGL GI GL |
Size Chart of ibr metal roll forming machine：
Name | Length | Width | Height | Weight |
Size | 9800mm | 2000mm | 1800mm | 7000KGS |
1. Installation and training:
a.If buyers visit our factory and check the ibr metal roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
ibr metal roll forming machine packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
