Uncoiler machine
Model: HX- Uncoiler machine
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

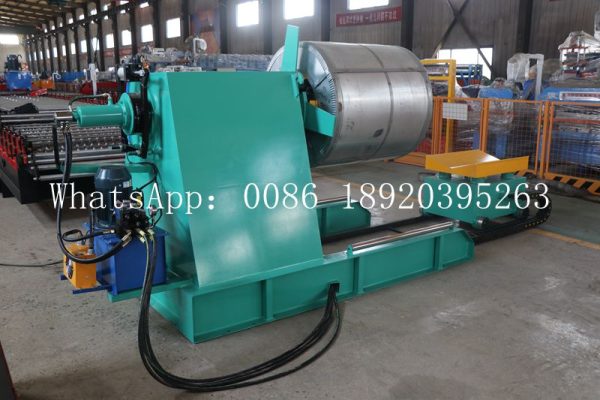

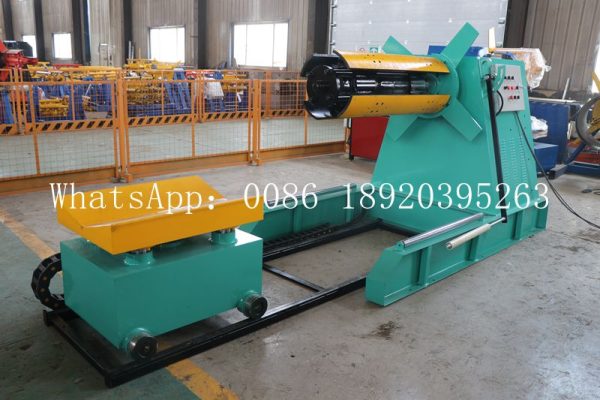

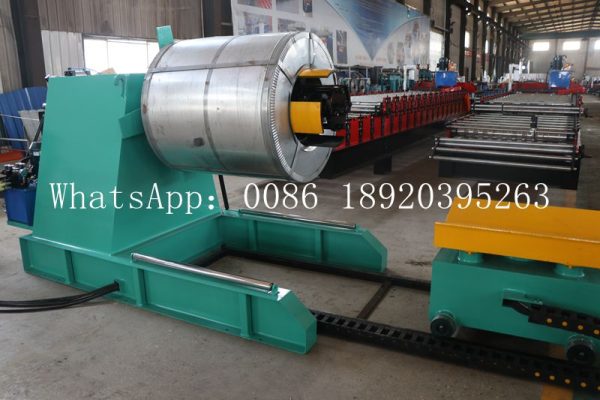

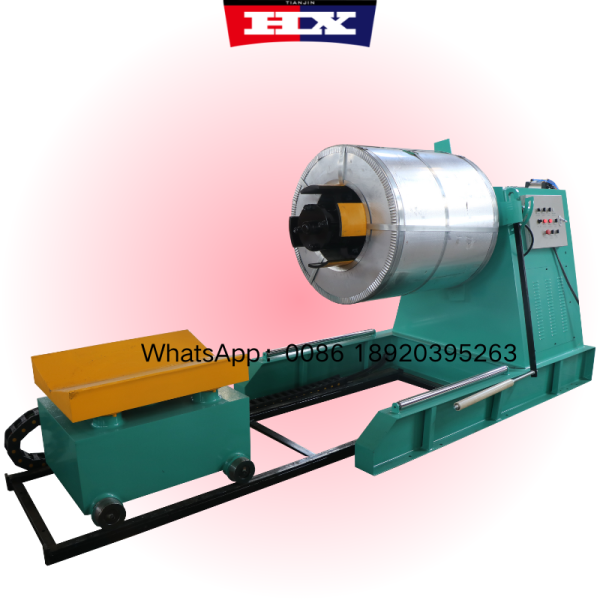

Uncoiler machine
The uncoiler machine is one of the essential and important equipment in the welded pipe production line. One of its functions is to support the steel coil by tightening the inner hole of the steel coil; the other is to send the head of the steel strip into the leveling machine by rotating with the cooperation of the straightening machine.
The performance of the uncoiler machine is crucial to the entire production line. In many years of design practice, the uncoiler machine structure has been continuously optimized and improved, so that the performance of the uncoiler has been improved.
| No. | Main Parameter of uncoiler machine | |
| 1 | Model | 1500mm |
| 2 | Weight | 2.5Tons (Include loading trolley) |
| 3 | Main axis | 200mm |
| 4 | Motor Power | 4Kw PM250 Steel reducer,Speed ratio 40:17 |
| 5 | Pump Station Motor | 4Kw ,Brand Lichao,Shanghai |
| 6 | Frequency Inverter | 5.5Kw,Sanjing |
| 7 | Cylinder type | 125 Rotating cylinder |
| 8 | Bottom shelf | 350 H Beams |
| 9 | The whole box iron plate | 14mm |
| 10 | Max put weight | 7Tons |
| 11 | Max coil width | 1250mm(or according to your need) |
| 12 | Coil diameter | 470-530mm or customer’s need |
| 13 | Control Box | Delta ,Taiwan |
| 14 | Power | 380V 50HZ 3Phase or customer’s need |
| 15 | Tightening principle: It consists of three support arms with a length of 1250mm and a thickness of 25mm. The support cylinder pulls the cast iron connecting rod to tighten, and in the front add the support arm. | |
| 16 | The Coil Car details : (1) Coil car lifting :Double cylinder,cylinder diameter 90mm, stroke 240mm (2)Car forward: 450 hydraulic motor (3)Car discharge:Panel length 1250 m panel width: 1100 mm (4) Car track : Width: 1050mm length: 2500mm (5) Car stroke : height stroke 400mm length stroke：2500mm | |
Uncoiler machine after Sales Service
1. Installation and training:
a.If buyers visit our factory and check the stainless steel roll levelling machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole stainless steel roll levelling machine .
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in Two year.
Uncoiler machine packing and shipping ：
a. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
b. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
c.One set of machine needs a 40′ container to shipping.
