Hydraulic decoiler丨Hydraulic uncoiler
Model: HX- Hydraulic decoiler丨Hydraulic uncoiler
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

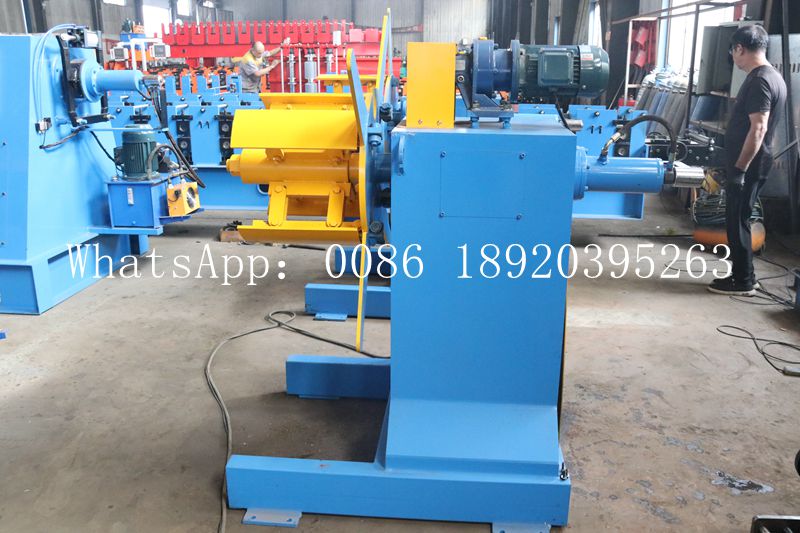

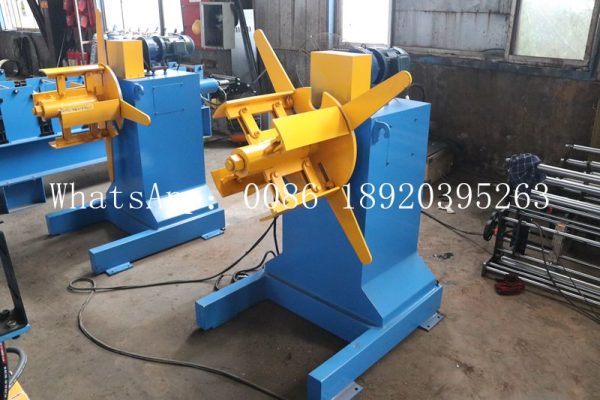

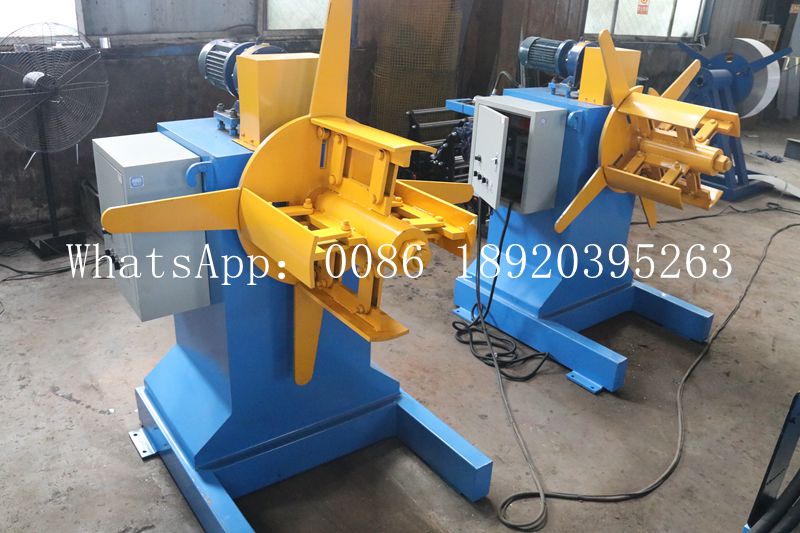

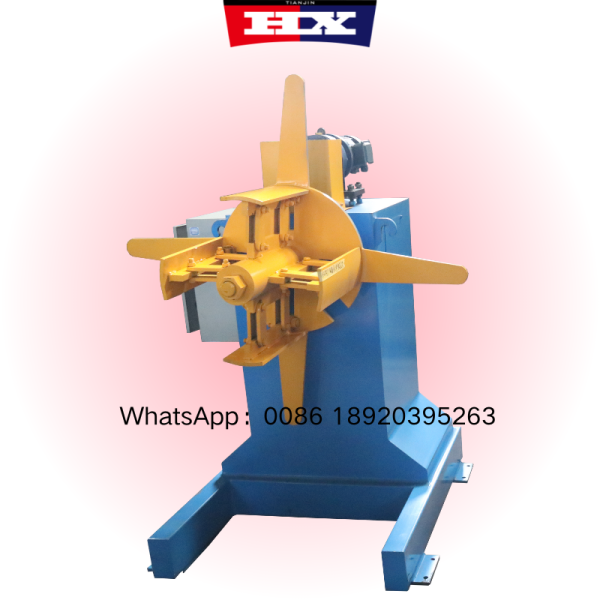

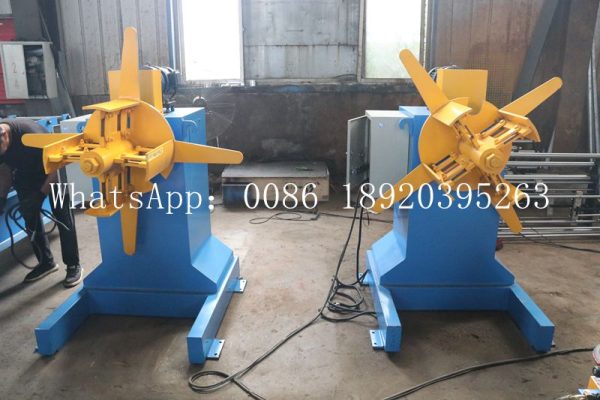

Hydraulic decoiler丨Hydraulic uncoiler
The fully automatic hydraulic decoiler is a special equipment used in conjunction with metal coil uncoiler, cross-cutting or laser cutting machines. The uncoiler has three main functions:
1. The main shaft of the hydraulic decoiler can rotate the coil and cooperate with the uncoiler or longitudinal shearing machine to transport the coil.
2. The main shaft of the hydraulic decoiler adopts the principle of hydraulic expansion and contraction, so that the inner hole of the coil is fitted and fixed with the support arm.
3. The hydraulic decoiler is equipped with a loading and unloading trolley and guide rails. The large-tonnage coil can be placed on the trolley for forward and backward and up and down operation, so that the coil is stably and safely fixed on the main shaft of the uncoiler.
| No. | Main Parameter of Hydraulic decoiler丨Hydraulic uncoiler | |
| 1 | Model | 600mm |
| 2 | Weight | 2.5Tons (Include loading trolley) |
| 3 | Main axis | 200mm |
| 4 | Motor Power | 4Kw PM250 Steel reducer,Speed ratio 40:17 |
| 5 | Pump Station Motor | 4Kw ,Brand Lichao,Shanghai |
| 6 | Frequency Inverter | 5.5Kw,Sanjing |
| 7 | Cylinder type | 125 Rotating cylinder |
| 8 | Bottom shelf | 350 H Beams |
| 9 | The whole box iron plate | 14mm |
| 10 | Max put weight | 2.5Tons |
| 11 | Max coil width | 600mm(or according to your need) |
| 12 | Coil diameter | 470-530mm or customer’s need |
| 13 | Control Box | Delta ,Taiwan |
| 14 | Power | 380V 50HZ 3Phase or customer’s need |
| 15 | Tightening principle: It consists of three support arms with a length of 1250mm and a thickness of 25mm. The support cylinder pulls the cast iron connecting rod to tighten, and in the front add the support arm. | |
| 16 | The Coil Car details : (1) Coil car lifting :Double cylinder,cylinder diameter 90mm, stroke 240mm (2)Car forward: 450 hydraulic motor (3)Car discharge:Panel length 1250 m panel width: 1100 mm (4) Car track : Width: 1050mm length: 2500mm (5) Car stroke : height stroke 400mm length stroke：2500mm | |
Hydraulic decoiler丨Hydraulic uncoiler after Sales Service
1. Installation and training:
a.If buyers visit our factory and check the stainless steel roll levelling machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole stainless steel roll levelling machine .
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in Two year.
Hydraulic decoiler丨Hydraulic uncoiler packing and shipping ：
a. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
b. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
c.One set of machine needs a 40′ container to shipping.
