Decoiler for sale
Model: HX- Decoiler for sale
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

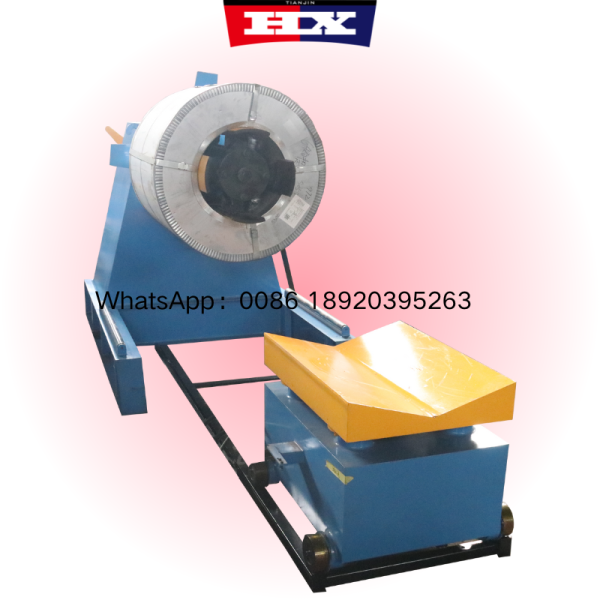

Decoiler for sale

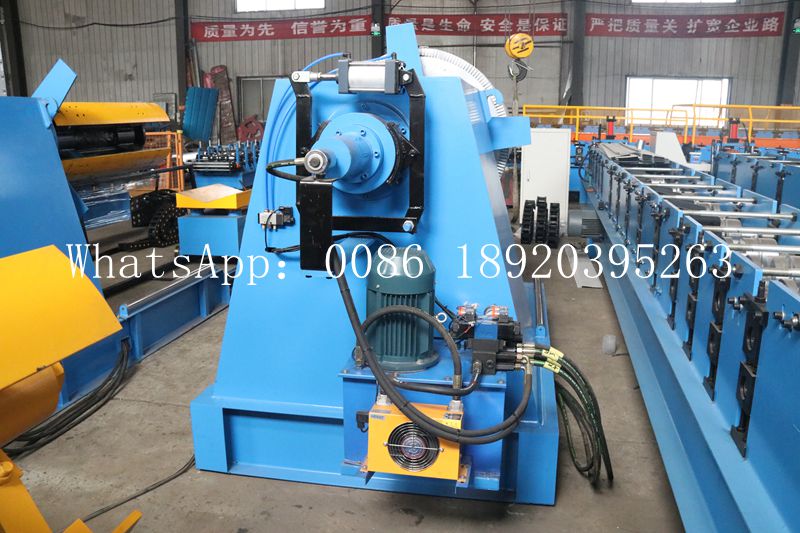

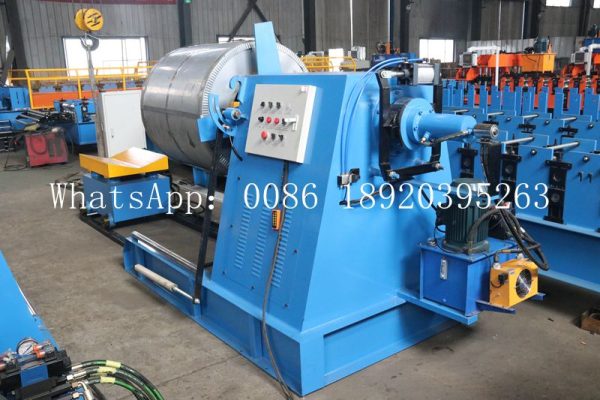

The decoiler for sale body is a welded box-shaped structure. The variable frequency speed regulating motor drives the reel shaft after deceleration through the gear box to provide the main power for the uncoiler. The reel of the decoiler for sale is a hollow shaft, which is supported on the gear box body by two bearings, and a transmission spur gear is installed between the bearings.
The gear box is lubricated by forced lubrication, and is equipped with two constant speed motors for the closed-loop oil lubrication system. The mandrel is a cantilever structure, and its front end is supported by an external support bearing during uncoiling to maintain the rigidity and stability of the decoiler.
| No. | Main Parameter of decoiler for sale | |
| 1 | Model | 1500mm |
| 2 | Weight | 2.5Tons (Include loading trolley) |
| 3 | Main axis | 200mm |
| 4 | Motor Power | 4Kw PM250 Steel reducer,Speed ratio 40:17 |
| 5 | Pump Station Motor | 4Kw ,Brand Lichao,Shanghai |
| 6 | Frequency Inverter | 5.5Kw,Sanjing |
| 7 | Cylinder type | 125 Rotating cylinder |
| 8 | Bottom shelf | 350 H Beams |
| 9 | The whole box iron plate | 14mm |
| 10 | Max put weight | 7Tons |
| 11 | Max coil width | 1250mm(or according to your need) |
| 12 | Coil diameter | 470-530mm or customer’s need |
| 13 | Control Box | Delta ,Taiwan |
| 14 | Power | 380V 50HZ 3Phase or customer’s need |
| 15 | Tightening principle: It consists of three support arms with a length of 1250mm and a thickness of 25mm. The support cylinder pulls the cast iron connecting rod to tighten, and in the front add the support arm. | |

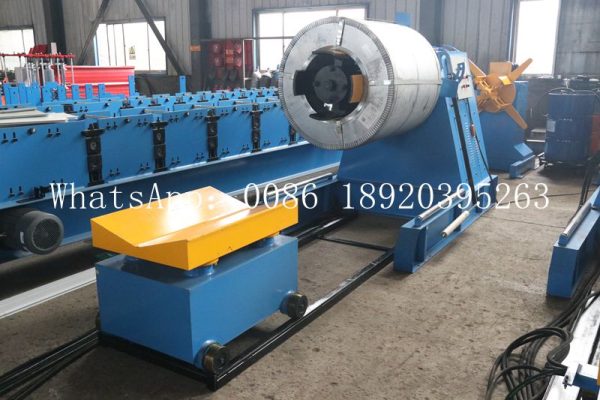

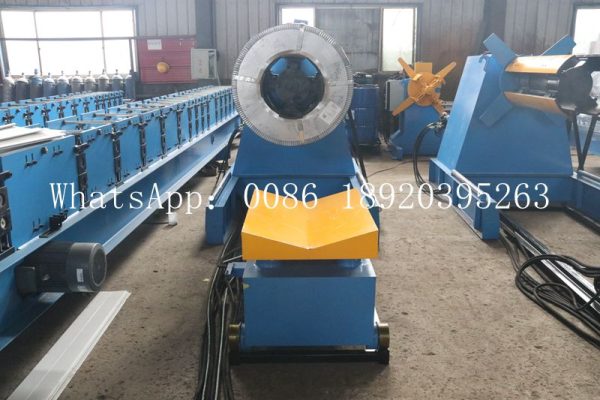

| 16 | The Coil Car details : (1) Coil car lifting :Double cylinder,cylinder diameter 90mm, stroke 240mm (2)Car forward: 450 hydraulic motor (3)Car discharge:Panel length 1250 m panel width: 1100 mm (4) Car track : Width: 1050mm length: 2500mm (5) Car stroke : height stroke 400mm length stroke：2500mm | |
Decoiler for sale after Sales Service
1. Installation and training:
a.If buyers visit our factory and check the stainless steel roll levelling machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole stainless steel roll levelling machine .
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in Two year.
Decoiler for sale packing and shipping ：
a. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
b. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
c.One set of machine needs a 40′ container to shipping.
