cz interchangeable purlin roll forming machine
Model: HX- CZ purlin
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

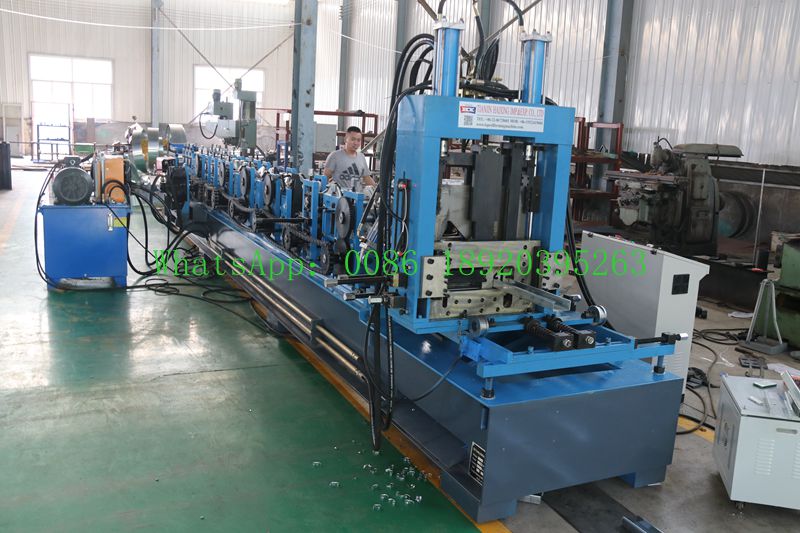

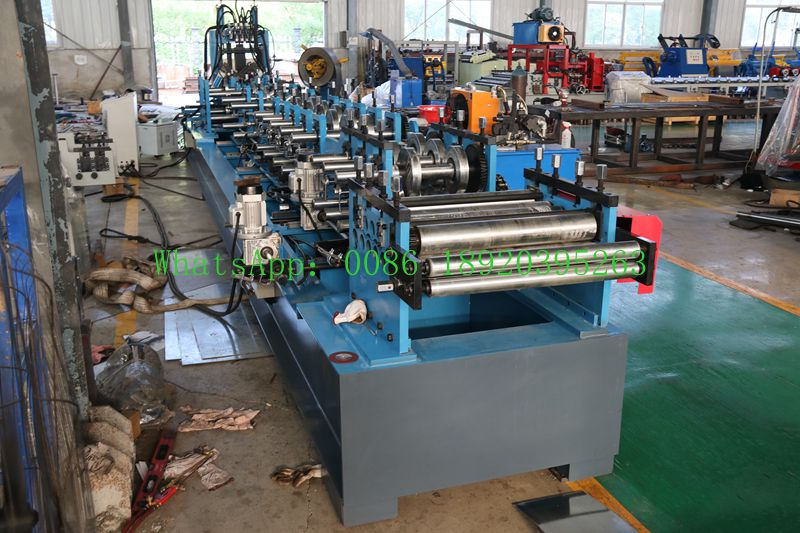

cz interchangeable purlin roll forming machine

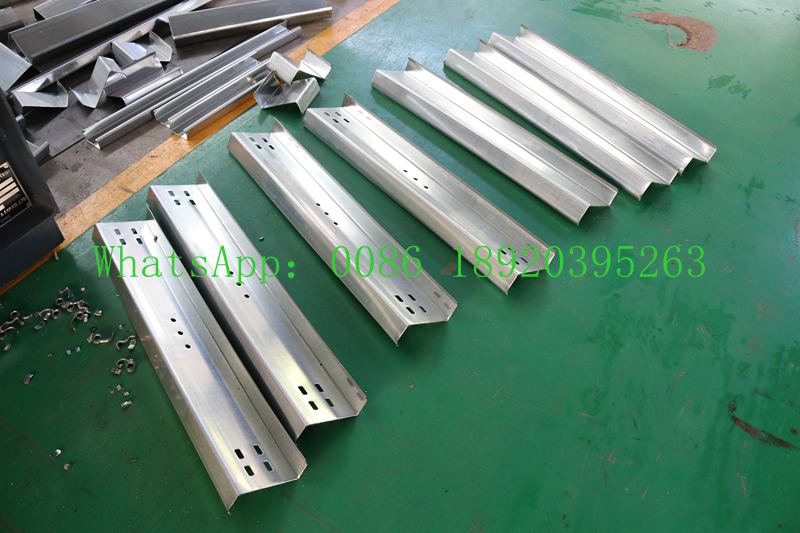

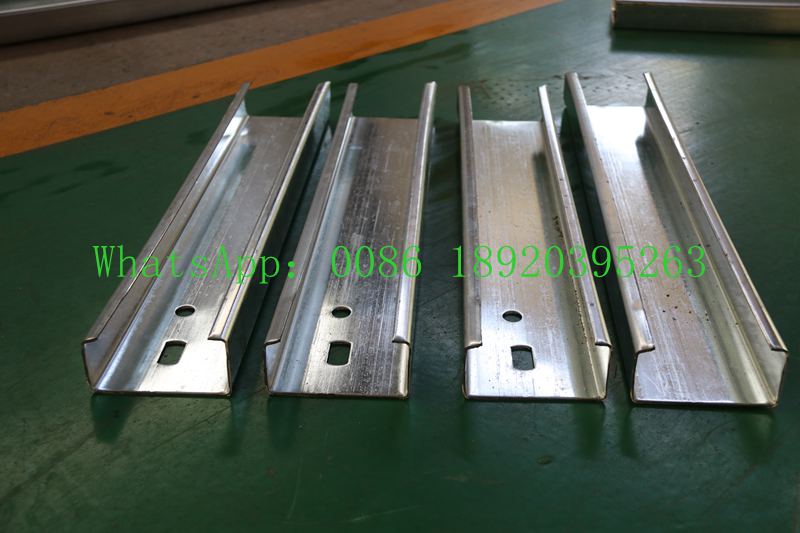

The cz interchangeable purlin roll forming machine uses steel of different specifications as raw materials, and makes purlins of various specifications through cutting, length setting, forming and other processes. The produced purlins have the advantages of high dimensional accuracy, smooth surface, high strength, strong durability, etc., and purlins of different specifications can be customized according to user needs.
The cz interchangeable purlin roll forming machine has the advantages of high work efficiency, simple operation, high degree of automation, etc. It can greatly improve work efficiency, reduce labor costs and processes, so it is widely used in the construction industry.
| No. | Main Parameter of cz interchangeable purlin roll forming machine | |
| 1 | Suitable to process | Galvanized steel strips |

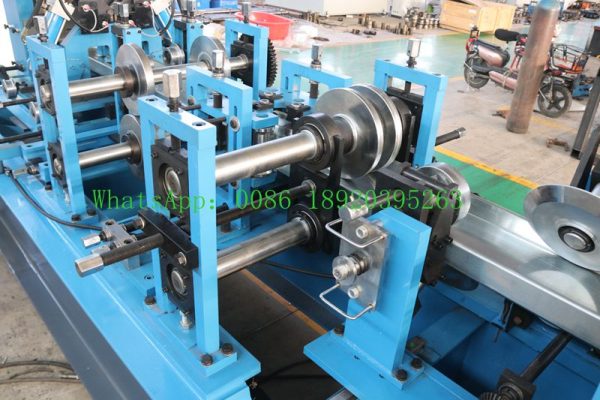

| 2 | Rollers | 16rollers+leveling axis 4rollers |
| 3 | Dimensions | 10500*1500*1600mm |
| 4 | Main Motor size | 11Kw*2 |
| 5 | Hydraulic pump | 5.5Kw |
| 6 | Thickness of the plate | 1.5-3.0mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12Mov,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 8.5T |
| 11 | Main structure of the machine | 450H steel |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 2Inch |
| 15 | Voltage | 380V 50HZ 3Phase |
| 16 | Control system | PLC control (Delta) |

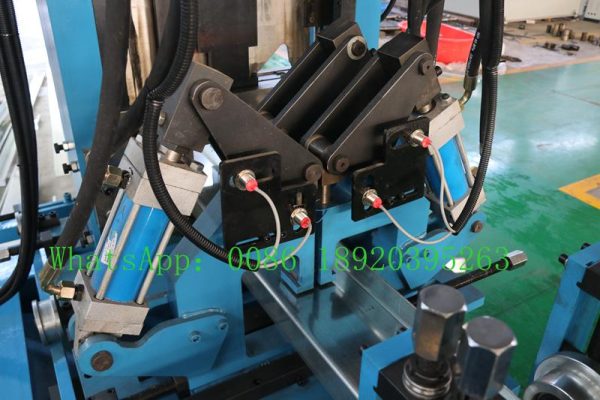

| 17 | Cut off the way | Hydraulic torsion shear |
| 18 | Drive mode | Motor driver |
| 19 | Hydraulic station pump | Gear pump |
| 20 | Touch screen | Delta |
| 21 | Rolling materials | Gcr15 |
| 22 | Length Tolerance | ±2mm |
cz interchangeable purlin roll forming machine after-sales services:
1. Warranty: One year and we will provide technical support for the life of the equipment.
2. Delivery period: Within 25-45 days after receipt of the deposit of advance payment
3.Warranty period: 24-month free service / paid service for the whole life of the machine
4. Installation and training
If buyers visit our factory and review the machine, we will teach you how to install and use the machine and also train your workers / technicians face to face.
cz interchangeable purlin roll forming machine packing and shipping ：
1. Automatic c z two in one purlin machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
