c z purlin roll forming machine full automatic
Model: HX- CZ purlin
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description
c z purlin roll forming machine full automatic

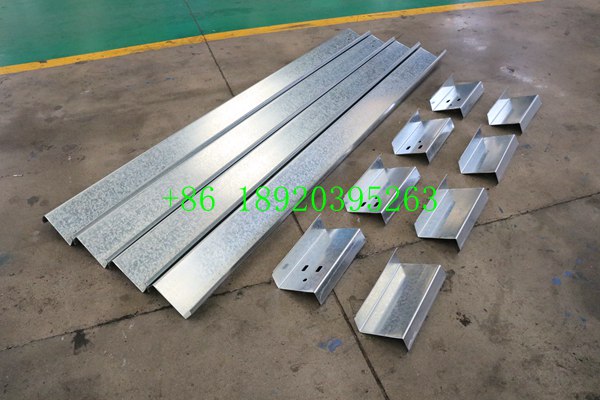

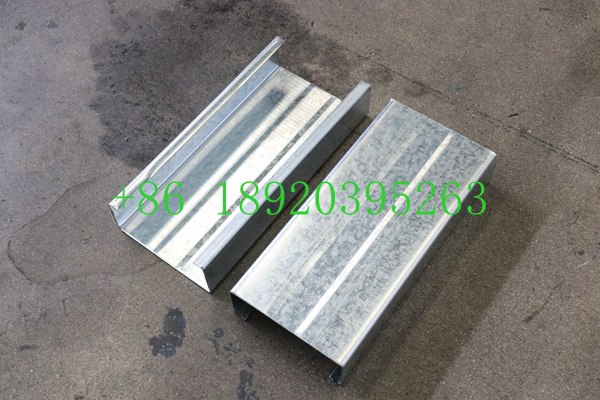

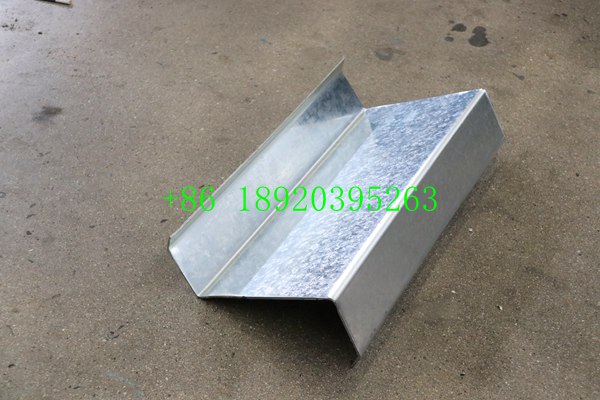

The c z purlin roll forming machine full automatic is a piece of equipment specially used to produce C-type and Z-type purlins.
Green and environmentally friendly: Fully automatic purlin changing machines usually use environmentally friendly materials and reduce the impact on the environment by optimizing the design and production process.
Easy to operate: Simple design makes it easy for operators to learn and manage.
Automatic counting system: Some machines are equipped with automatic counting systems to facilitate counting production quantities.

| No. | Main Parameter of c z purlin roll forming machine full automatic | |
| 1 | Suitable to process | Galvanized steel strips |
| 2 | Rollers | 16rollers+leveling axis 4rollers |
| 3 | Dimensions | 10500*1500*1600mm |
| 4 | Main Motor size | 11Kw*2 |
| 5 | Hydraulic pump | 5.5Kw |
| 6 | Thickness of the plate | 1.5-3.0mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12Mov,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 8.5T |
| 11 | Main structure of the machine | 450H steel |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 2Inch |
| 15 | Voltage | 380V 50HZ 3Phase |
| 16 | Control system | PLC control (Delta) |
| 17 | Cut off the way | Hydraulic torsion shear |
| 18 | Drive mode | Motor driver |
| 19 | Hydraulic station pump | Gear pump |
| 20 | Touch screen | Delta |
| 21 | Rolling materials | Gcr15 |
| 22 | Length Tolerance | ±2mm |
c z purlin roll forming machine full automatic after-sales services:
1. Warranty: One year and we will provide technical support for the life of the equipment.
2. Delivery period: Within 25-45 days after receipt of the deposit of advance payment
3.Warranty period: 24-month free service / paid service for the whole life of the machine
4. Installation and training
If buyers visit our factory and review the machine, we will teach you how to install and use the machine and also train your workers / technicians face to face.
c z purlin roll forming machine full automatic packing and shipping :
1. C Z purlin roll forming machine full automatic and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
