z purlin roll forming machine
Develivery time:25-35 days
Model:HX-Z Purlin
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
- Description
- Inquiry
Description

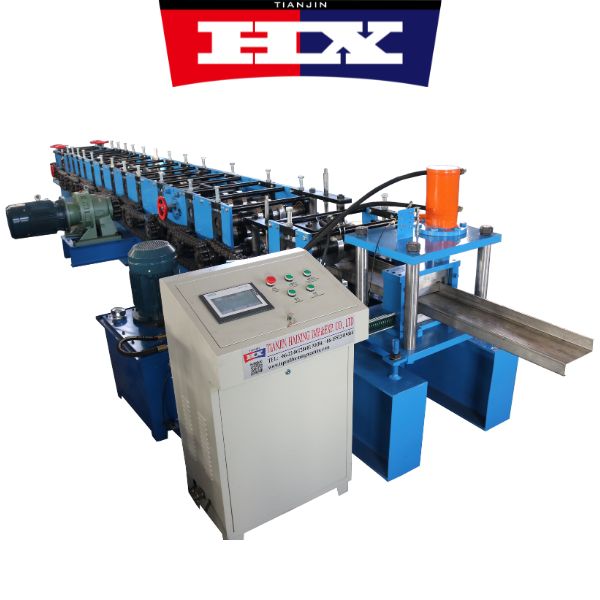

z purlin roll forming machine
z purlin roll forming machine based on different designs or customer’s samples . It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

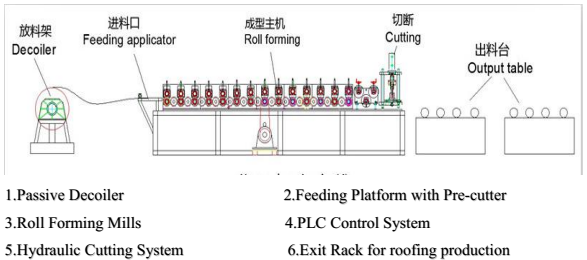

Z Purlin Roll Forming Machine Production Process
Z Purlin Roll Forming Machine More machine information
| Decoiler |  |
| Forming Machine |  |
| Stacker | |
| Consumable parts |  |
| Packaing |  |
| Container Reinforcement |  |
| Product Name | z purlin roll forming machine |
Z Purlin Roll Forming Machine parameters
| Article No. | Item Name | Specification |
| 1 | Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| 2 | Processing thickness (mm) | 1.5-3.0mm |
| 3 | Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| 4 | Material of shafts | 45# steel |
| 5 | Diameter of shafts | 90mm or as your customized |
| 6 | Forming speed | 20-25 m/min |
| 7 | Under frame | 350 H-beam |
| 8 | Sidewall | 20mm |
| 9 | Connect bar | 25mm, zinc plated |
| 10 | Forming steps | 12 rollers |
| 11 | Control system | Delta PLC and Inverter |
| 12 | Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| 13 | Drive mode | Chain and sprocket, chain size 1 inch |
| 14 | Main motor | 7.5kw |
| 15 | Hydraulic pump station | 5.5kw |
| 16 | Cutting model | Hydraulic profile cutting |
| 17 | Dimension of the machine | 6.8m×1.5mm×1.2m |
| 18 | Weight of the machine | 4.5 tons |
Our advantage
1. Warranty :Two years,and we will provide technical support for whole life of the z purlin roll forming machine.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
FAQ
1. who are we?
We are based in Tianjin, China, start from 2013,sell to South America(20.00%),Oceania(20.00%),Africa(20.00%),Mid East(20.00%),Southeast Asia(20.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
1.Our company is manufacture for all kinds of roof making machine, and other relative machine. 2.Our company have been in this industry over 22 years, owned high quality and the newest technology. 3.We owned professional development team and service team.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,French,Russian
Our Other Products
We have roof and wall roll forming machine, light steel keel roll forming machine,purlin roll forming machine,ridge cap roll forming machine,floor deck roll forming machine,leveling and slitting production line,bending machine,shearing machine,decoiler machine,stacker,downspout & rain gutter roll forming machine,shutter door roll forming machine,door frame roll forming machine,window frame machine,embossing machine etc.
