v keel angle iron roll forming machine
Product No: HX-angle steel keel
Min.Order Quantity: 1 Set
Production Cycle: 30-45 workdays
Warranty Period: 18 months
Payment Terms: T/T, Western Union, Paypal , Credit Card, Online pay
Port of Dispatch: Tianjin
Supply Ability: 100 sets per month
- Description
- Inquiry
Description

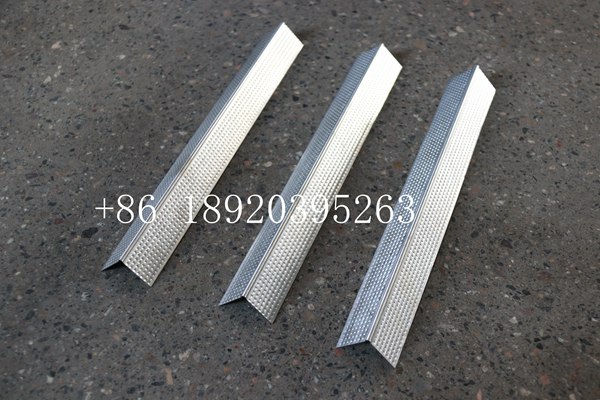

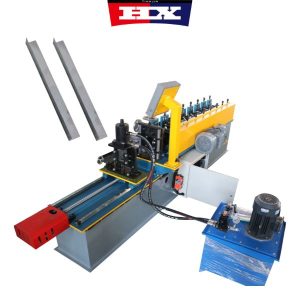

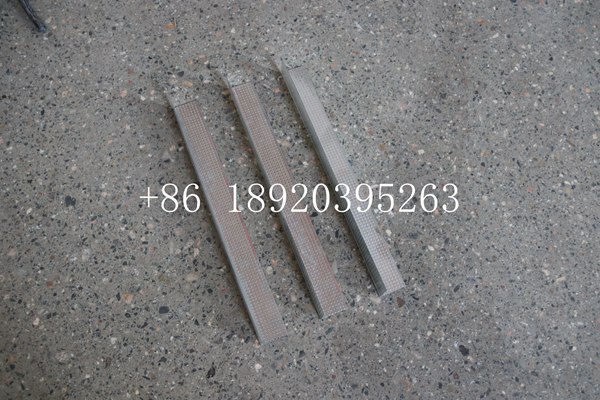

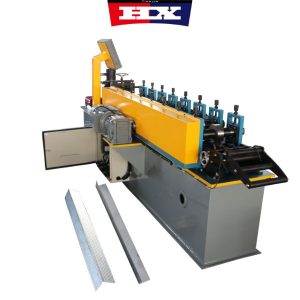

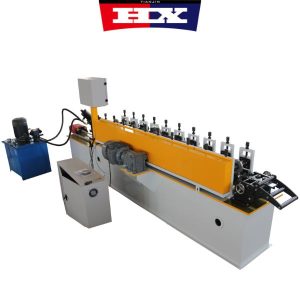

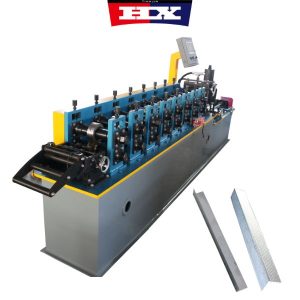

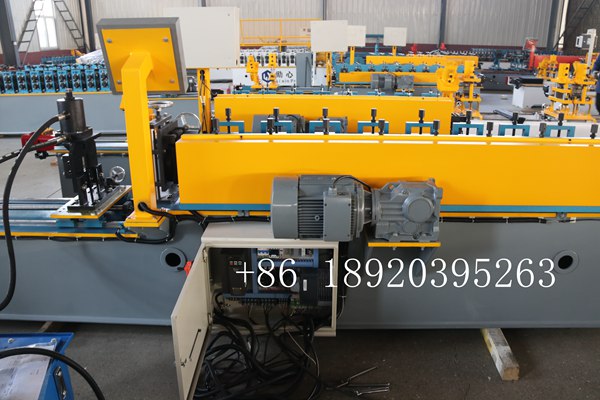

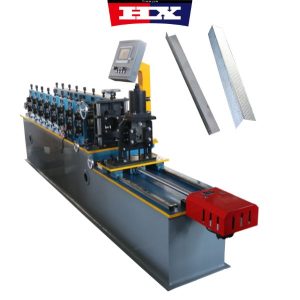

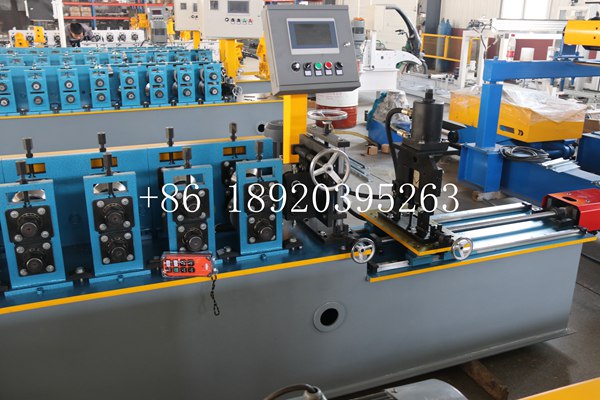

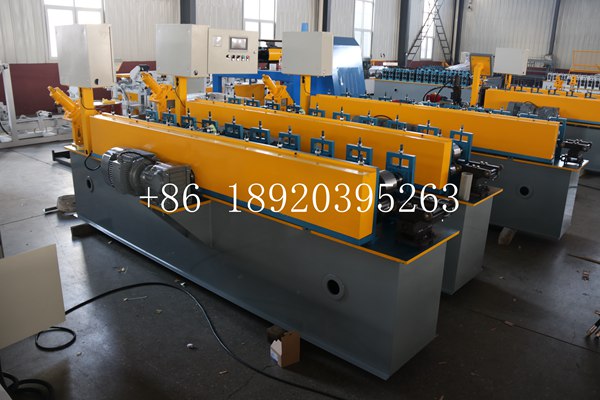

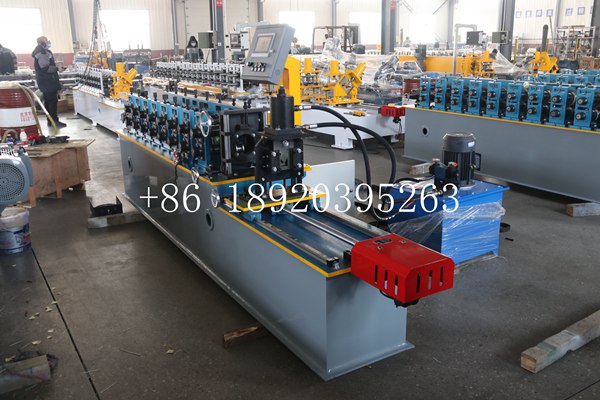

v keel angle iron roll forming machine
V keel angle iron roll forming machine joists are commonly used for partition walls, ceilings and other supporting structures in buildings. The following are the advantages of light steel keel machines:
1.Optimized chip removal system: Equipment may be equipped with an optimized chip removal system, reducing the frequency of cleaning.
2.Reliable pressure control system: Some models adopt a reliable pressure control system to ensure the accuracy and consistency of molding.
No. | v keel angle iron roll forming machine | |
1 | Suitable to process | Color alu-zinc steel strips |
2 | Roller | (10-14)Rows plus leveling device |
3 | Dimensions | 5.4*1*1.5m |
4 | Motor Power | 5.5Kw |
5 | Pump Station Motor | 5.5Kw.Lichao Brand |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 30-35m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter of the roller | Φ50mm |
10 | Weight | About 2600kgs |
11 | Main structure of the machine | Square steel frame |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 16mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer’s need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Gear driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
Our advantage
- Machine customization
steel keel profile, Machine color, Localization of operating language and voltage, Logo design, Machine protective cover. - Inspection report
Machine inspection reports of international certification institutions, such as Bureau Veritas, are available. - After-sales service
Provide local language machine installation videos, online remote guidance, and engineer visits for adjustment and repair services. - The number of employees
5 CAD designers, 10 mechanics, 30 salesmen, 2 quality inspectors. - Warranty period
2 years - Certification of products
CE, ISO
V keel angle iron roll forming machine after sales service
1. Warranty :Two years,and we will provide technical support for whole life of the light steel keel machine roll forming.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
