keel making machine
Product No: HX- steel keel
Min.Order Quantity: 1 Set
Production Cycle: 30-45 workdays
Warranty Period: 18 months
Payment Terms: T/T, Western Union, Paypal , Credit Card, Online pay
Port of Dispatch: Tianjin
Supply Ability: 100 sets per month
- Description
- Inquiry
Description
keel making machine
The shafts of the keel making machine all are solid, with 70mm diameter. And the shaft diameter could be 80mm or 90mm, it depends on the profile of the product. Our factory generally selects H steel with the material of Q235 national standard as the main frame of the steel keel machine. The shaft material is also 45# steel, which has a long service life and is not easy to rust.
TECHNICAL SHEETS OF keel making machine | ||
Applicable raw materials | ||
| 1 | Types of raw materials | GI GL PPGI PPGL |
| 2 | Thickness of raw materials | 0.4-0.7 mm |
| 3 | Feeding width | according to the design |
Machine parameters | ||
| 1 | Main structure | Square box frame（6mm） |
| 2 | Side panel | 16mm steel plate (National standard Q235 steel） |
| 3 | Number of rows of rollers | 13 rows |
| 4 | Material of rollers | 45# forging steel with chromium plate |
| 5 | Material of shaft | 45# steel |

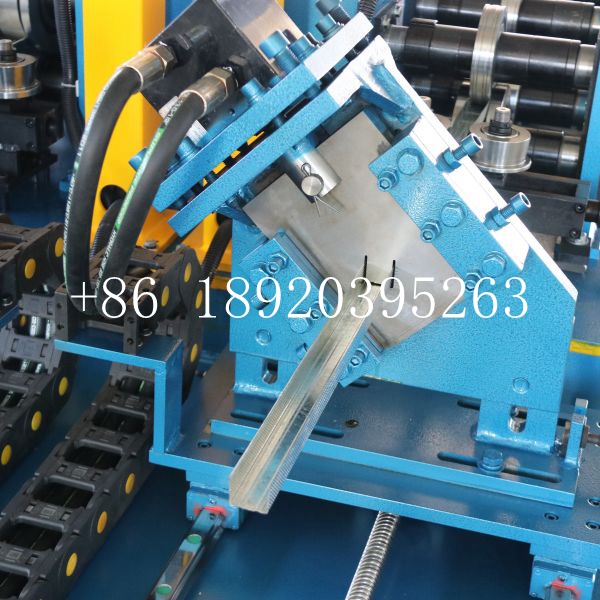

| 6 | Cutting type | Hydraulic tracking cutting |
| 7 | Material of cutting blade | Cr12, Quenched treatment 58℃-60℃ |
| 8 | Pump station | 3 kw |
| 9 | Motor | 5.5 kw +servo motor 1.5kw |

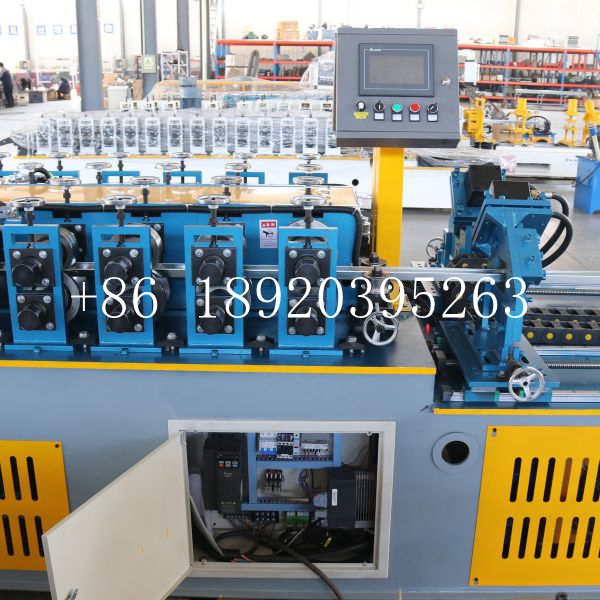

| 10 | Control system | PLC (Touch screen: Delta) |
| 11 | Voltage | 380V 50Hz 3 phases or as customer’s need |
| 12 | Productivity | 25-35m/min |
| 13 | Dimensions | 6500*800*1500mm |
| 14 | Weight | About 3500kgs |
| 15 | keel making machine | |
OUR ADVANTAGE
- Machine customization
steel keel profile, Machine color, Localization of operating language and voltage, Logo design, Machine protective cover. - Inspection report
Keel making machine inspection reports of international certification institutions, such as SGS, Bureau Veritas, are available. - After-sales service
Provide local language machine installation videos, online remote guidance, and engineer visits for adjustment and repair services. - The number of employees
5 CAD designers, 10 mechanics, 30 salesmen, 2 quality inspectors. - Warranty period
2 years - Certification of products
CE, ISO
