shutter door roll forming machine
Model: HX- Shutter Door Machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description
shutter door roll forming machine

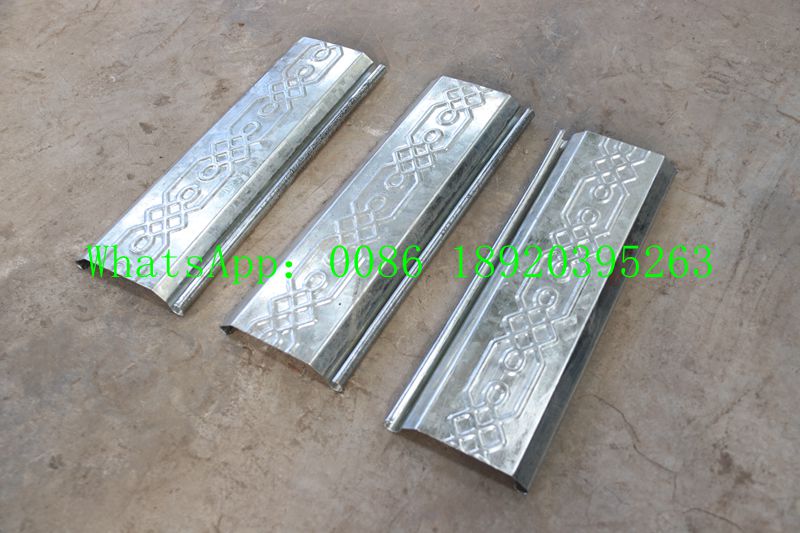

Shutter door roll forming machine is a machine used to manufacture roller shutter doors. It uses cold roll forming technology to bend metal plates into the shape of roller shutter doors. It is suitable for the production of various types of roller shutter doors, such as steel, aluminum alloy, etc., with beautiful appearance, high strength and long service life.
1. Shutter door roll forming machine uses CNC technology and has high production efficiency.
2. Shutter door roll forming machine is easy to operate and simple to learn.
| No. | Main Parameter of shutter door roll forming machine | |
| 1 | Suitable to process | Galvanized steel strips |
| 2 | Rollers | 16rollers+leveling axis 4rollers |
| 3 | Dimensions | 10500*1500*1600mm |
| 4 | Main Motor size | 11Kw*2 |
| 5 | Hydraulic pump | 5.5Kw |
| 6 | Thickness of the plate | 1.5-3.0mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12Mov,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 8.5T |
| 11 | Main structure of the machine | 450H steel |
| 12 | Processing precision | Within 2.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 2Inch |
| 15 | Voltage | 380V 50HZ 3Phase |
| 16 | Control system | PLC control (Delta) |

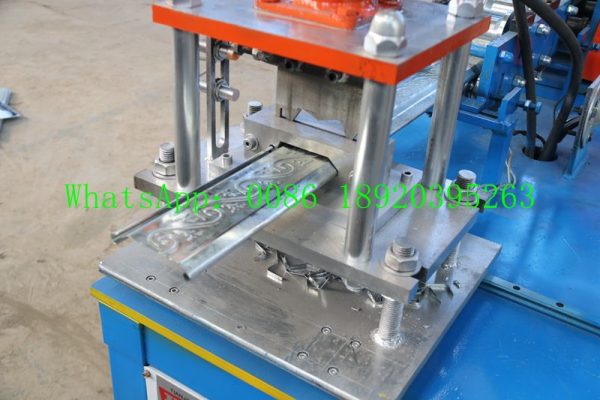

| 17 | Cut off the way | Hydraulic torsion shear |
| 18 | Drive mode | Motor driver |
| 19 | Hydraulic station pump | Gear pump |
| 20 | Touch screen | Delta |
| 21 | Rolling materials | Gcr15 |
| 22 | Length Tolerance | ±2mm |
shutter door roll forming machine after-sales services:
1. Warranty: One year and we will provide technical support for the life of the equipment.
2. Delivery period: Within 25-45 days after receipt of the deposit of advance payment
3.Warranty period: 24-month free service / paid service for the whole life of the machine
4. Installation and training
If buyers visit our factory and review the machine, we will teach you how to install and use the machine and also train your workers / technicians face to face.
