light keel roll forming machine steel
Product No: HX-Omega steel keel
Min.Order Quantity: 1 Set
Production Cycle: 30-45 workdays
Warranty Period: 18 months
Payment Terms: T/T, Western Union, Paypal , Credit Card, Online pay
Port of Dispatch: Tianjin
Supply Ability: 100 sets per month
- Description
- Inquiry
Description
light keel roll forming machine steel
light keel roll forming machine steel cutter portion is driven by a hydraulic cylinder to move up and down the tool, you can put steel cut off. Corrugated steel strips Roll forming machine production process is as follows: steel roller into the molded part after molding to-pressure part, pressed into an equidistant one, the cutter is responsible for cutting to length.Fast speed with Servo tracking for non-stop shearing system.
No. | light keel roll forming machine steel | |
1 | Suitable to process | Color alu-zinc steel strips |
2 | Roller | (10-14)Rows plus leveling device |
3 | Dimensions | 5.4*1*1.5m |
4 | Motor Power | 5.5Kw |
5 | Pump Station Motor | 5.5Kw.Lichao Brand |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 30-35m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter of the roller | Φ50mm |
10 | Weight | About 2600kgs |
11 | Main structure of the machine | Square steel frame |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 16mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer’s need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Gear driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
Process demonstration
Product picture | ||

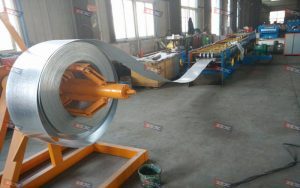

decoiler |

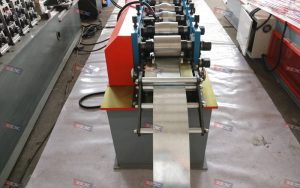

feeding table |

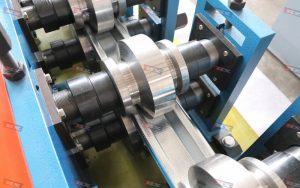

rollers and shafts |

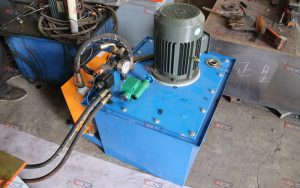

pump station |

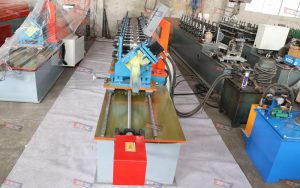

control and cutting system |

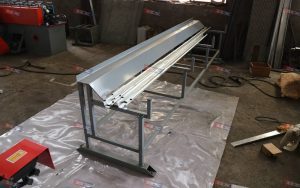

receiving rack |
 | ||
light keel roll forming machine steel packaging and shipping | ||
| A.The main body of the light keel roll forming machine steel with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. B.Rollers and shafts are covered with anti-rust oil. C.PLC control system and motor pump are packed with waterproof paper and plastic film. D.Spare parts in a carton box. E.Manual decoiler was nude packing. F.The output-table put into a carton box. G.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. | ||
 | ||
Our advantage
- Machine customization
steel keel profile, Machine color, Localization of operating language and voltage, Logo design, Machine protective cover. - Inspection report
Machine inspection reports of international certification institutions, such as SGS, Bureau Veritas, are available. - After-sales service
Provide local language machine installation videos, online remote guidance, and engineer visits for adjustment and repair services. - The number of employees
5 CAD designers, 10 mechanics, 30 salesmen, 2 quality inspectors. - Warranty period
2 years - Certification of products
CE, ISO
After sales service
1. Warranty :Two years,and we will provide technical support for whole life of the light keel roll forming machine steel.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
