Glazed tile roll forming machine
Model: HX- Glazed tile roll forming machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

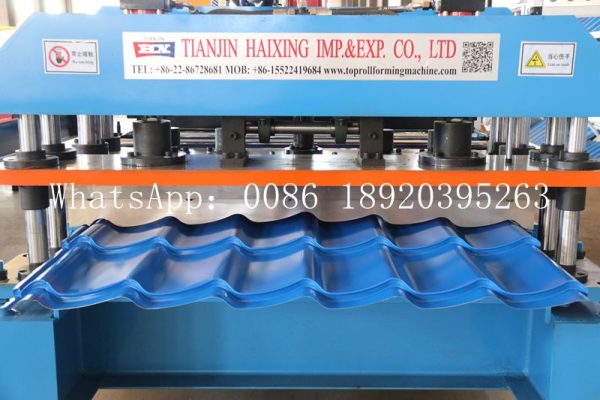

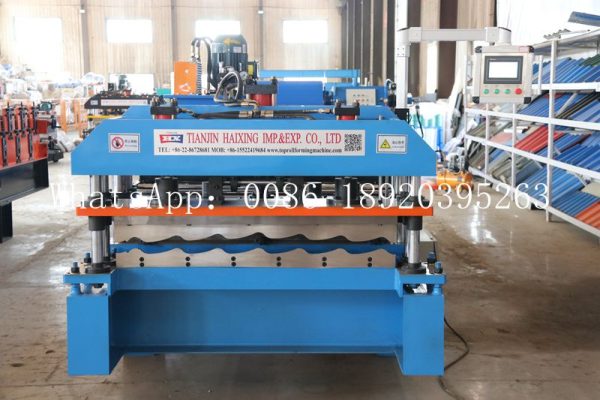

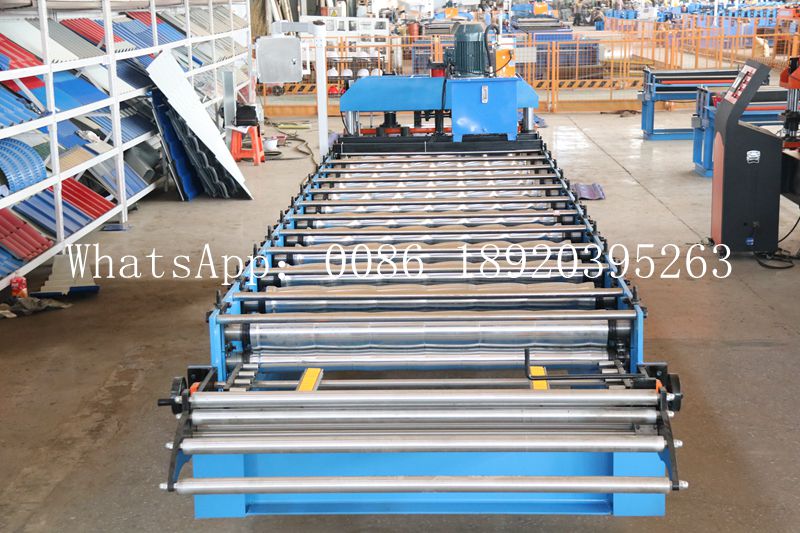

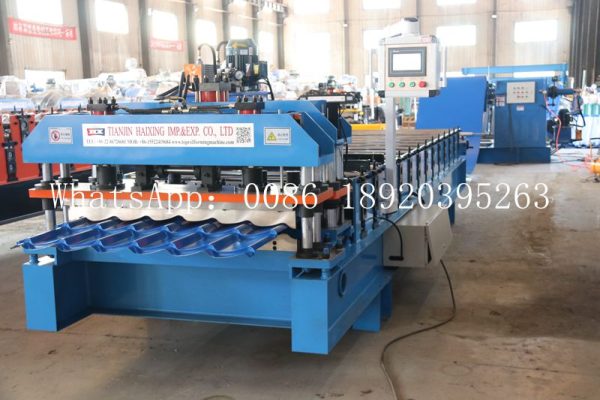

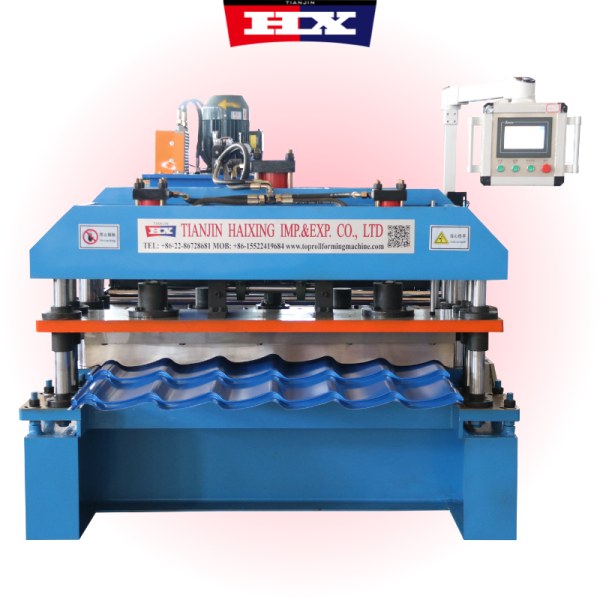

Glazed tile roll forming machine
The glazed tile roll forming machine uses color steel plate as the base plate, which is formed by wheel rolling. It is colorful, classical and elegant, adding the finishing touch to your building. It has light weight, high strength, good waterproofness, easy and quick installation, and can be widely used in villa roofs, urban flat-to-slope conversion, tourist scenic area buildings, etc.
1. Please use a three-phase four-wire leakage protector. Be sure to cut off the power supply during installation.
2. Please check whether the wiring inside the control cabinet is loose due to transportation or other reasons.
Glazed tile roll forming machine specification paration: | |
| Raw materials width | 1250mm/1220mm/1200mm/1000mm |
| Power | 3-5.5Kw |
| Roll station number | 11-20 steps |
| Thickness of the coil | 0.3-0.8mm |
| Productivity | 10-15m/min |
| Diameter of shaft | 70mm |
| Main Shaft Material | 45# steel with finish turning |
| Roller materials | 45# Forging Steel with Chromium Plate |
| Machine Main Frame | 300-450 H beams |
| Hydraulic pressure | 18-20Mpa |
| Raw materials | PPGI PPGL GI GL |
Glazed tile roll forming machine installation and training:
a.If buyers visit our factory and check the double layer galvanized tile roofing sheet making machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Glazed tile roll forming machine packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
