Glazed tile machine
Model: HX- Glazed tile machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

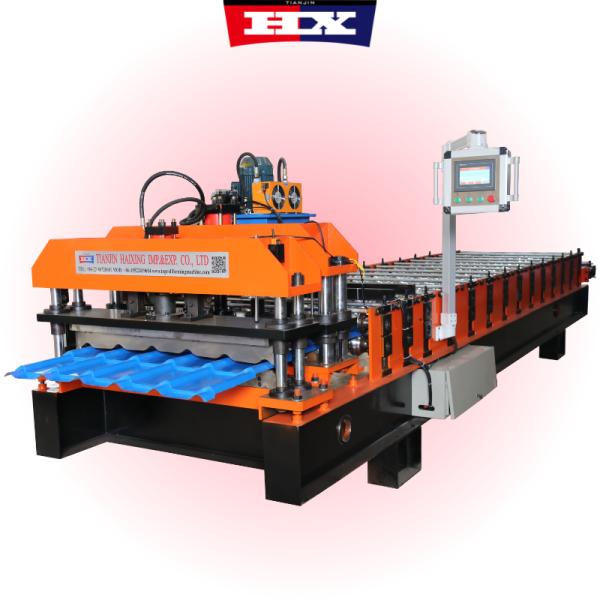

Glazed tile machine
Glazed tile machine uses galvanized steel plates or colored steel plates or aluminum plates of different colors as raw materials. The products produced are used to build roof panels and wall panels on the outside of the house as well as interior decorative panels or ceilings, etc., to increase the beauty and sexiness of the roof or wall.
Glazed tile machine has no limit on production length. Multiple sets of different data can be set on the computer controller according to construction requirements. After one-click “confirmation”, the equipment automatically produces finished products of different lengths according to the data set by the computer.
Glazed tile machine specification paration: | |
| Raw materials width | 1250mm/1220mm/1200mm/1000mm |
| Power | 3-5.5Kw |
| Roll station number | 11-20 steps |
| Thickness of the coil | 0.3-0.8mm |
| Productivity | 10-15m/min |
| Diameter of shaft | 70mm |
| Main Shaft Material | 45# steel with finish turning |
| Roller materials | 45# Forging Steel with Chromium Plate |
| Machine Main Frame | 300-450 H beams |
| Hydraulic pressure | 18-20Mpa |
| Raw materials | PPGI PPGL GI GL |
Glazed tile machine installation and training:
a.If buyers visit our factory and check the double layer galvanized tile roofing sheet making machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Glazed tile machine packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
