Curved roof panel machine
Model: HX- Curved roof panel machine
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

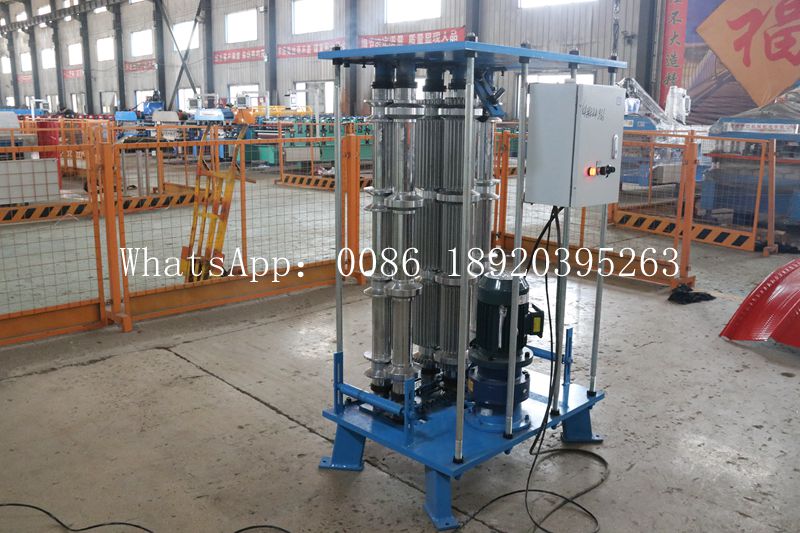

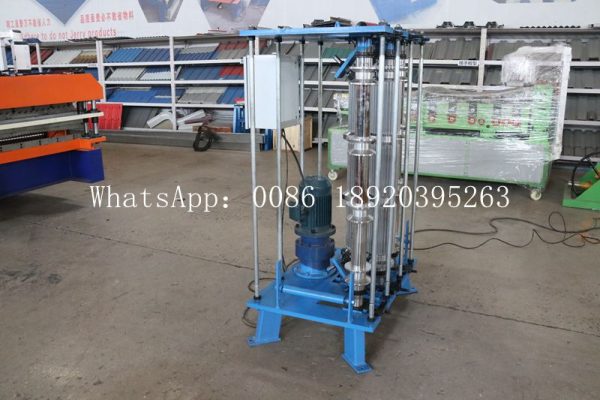

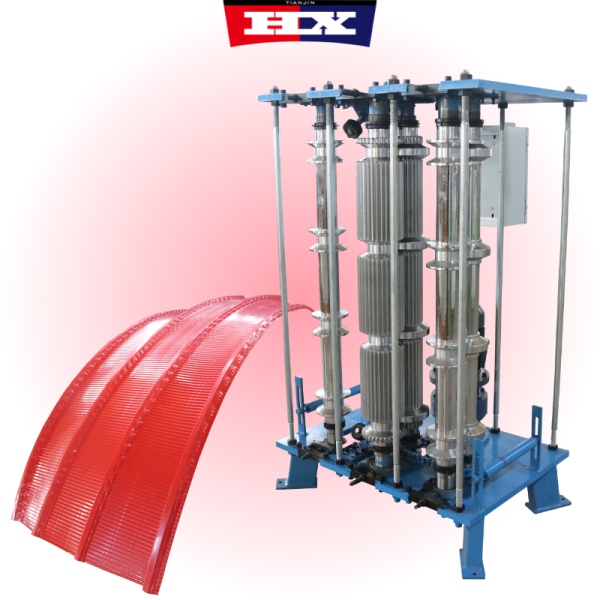

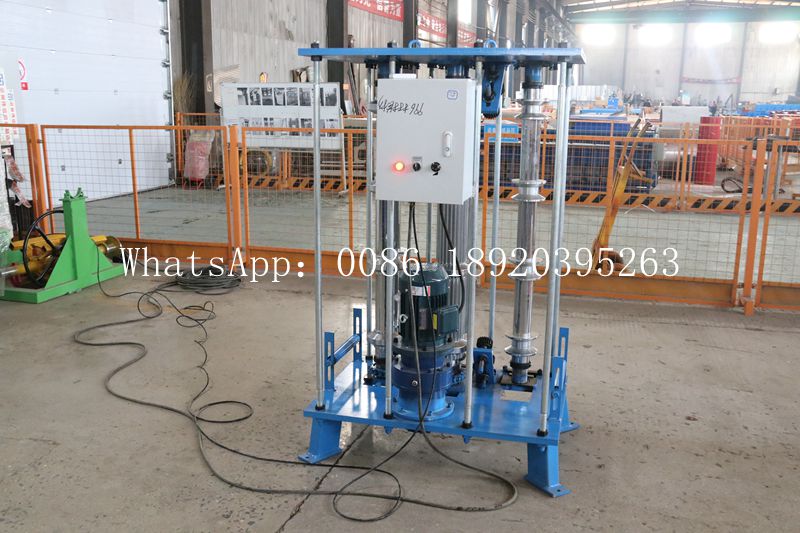

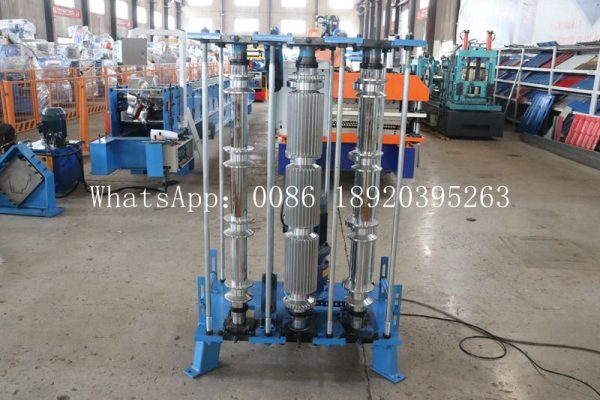

Curved roof panel machine

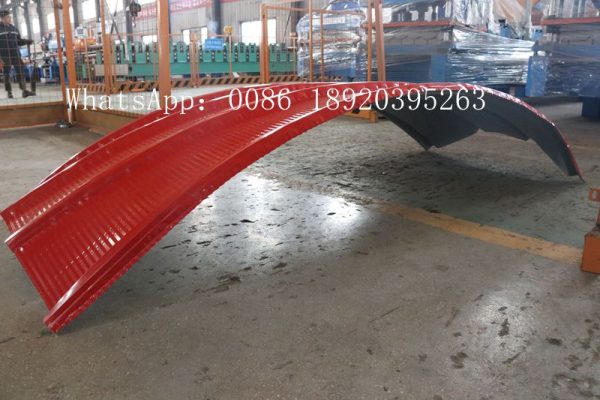

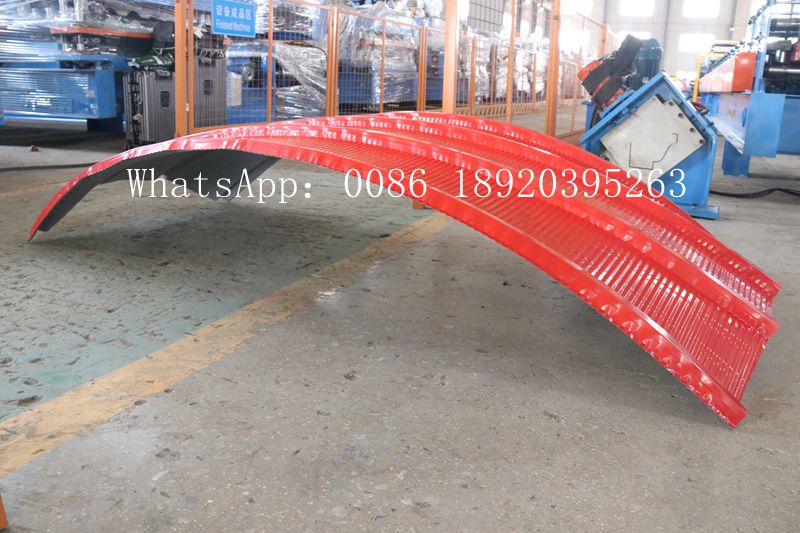

The curved roof panel machine can produce roof panels of various appearances according to production needs. The building has bright colors and smooth lines, which can increase the building color and beautify the urban landscape. It is used for the construction of arched roofs.
The products produced by the curved roof panel machine are characterized by light weight, high strength, heavy load-bearing capacity, and good earthquake resistance. They are widely used in the field of multi story steel structure buildings.
No. | Curved roof panel machine parameter | |
1 | Suitable to process | Color alu-zinc steel coil |
2 | Roller | 3Rows |
3 | Dimensions | 2.6*1.5*1.6m |
4 | Motor Power | 3Kw |
5 | Pump Station Motor | 3Kw.Lichao Brand |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 3-5m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter of the roller | Φ70mm |
10 | Weight | About 2500kgs |
11 | Main structure of the machine | 350H beams |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 16mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer’s need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Motor driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
Curved roof panel machine after Sales Service
1. Installation and training:
a.If buyers visit our factory and check the stainless steel roll levelling machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole stainless steel roll levelling machine .
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in Two year.
Curved roof panel machine packing and shipping ：
a. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
b. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
c.One set of machine needs a 40′ container to shipping.
