Curve roof machine
Model: HX- Curve roof machine
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

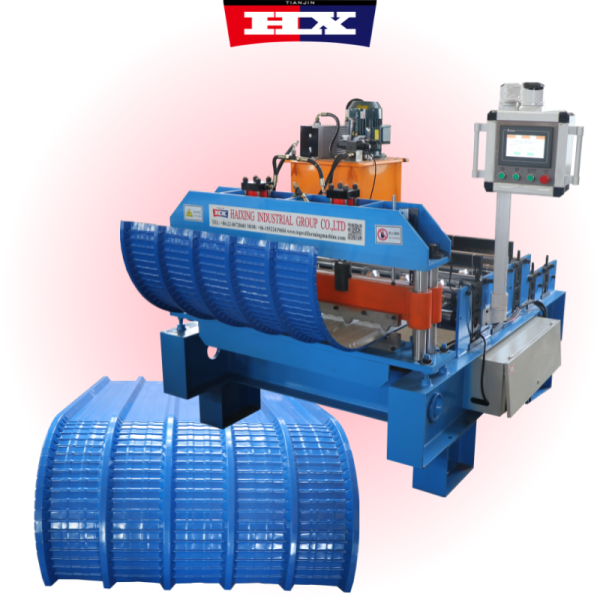

Curve roof machine
The curve roof machine adopts automatic control software to realize the information management of production. The whole unit automatic control system adopts a highly integrated network, which makes the automatic system have superior performance.
Main parameters of curve roof machine spindle material: 45# steel quenching and tempering, outer diameter Φ80mm. Roller material: Cr12 chrome steel quenching treatment HRC60-62°. GCR15 bearing steel quenching treatment HRC58-60°.
No. | Curve roof machine parameter | |
1 | Suitable to process | Color alu-zinc steel coil |
2 | Roller | 3Rows |
3 | Dimensions | 2.6*1.5*1.6m |
4 | Motor Power | 3Kw |
5 | Pump Station Motor | 3Kw.Lichao Brand |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 3-5m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter of the roller | Φ70mm |
10 | Weight | About 2500kgs |
11 | Main structure of the machine | 350H beams |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 16mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer’s need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Motor driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
Curve roof machine after Sales Service
1. Installation and training:
a.If buyers visit our factory and check the stainless steel roll levelling machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole stainless steel roll levelling machine .
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in Two year.
Curve roof machine packing and shipping ：
a. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
b. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
c.One set of machine needs a 40′ container to shipping.
