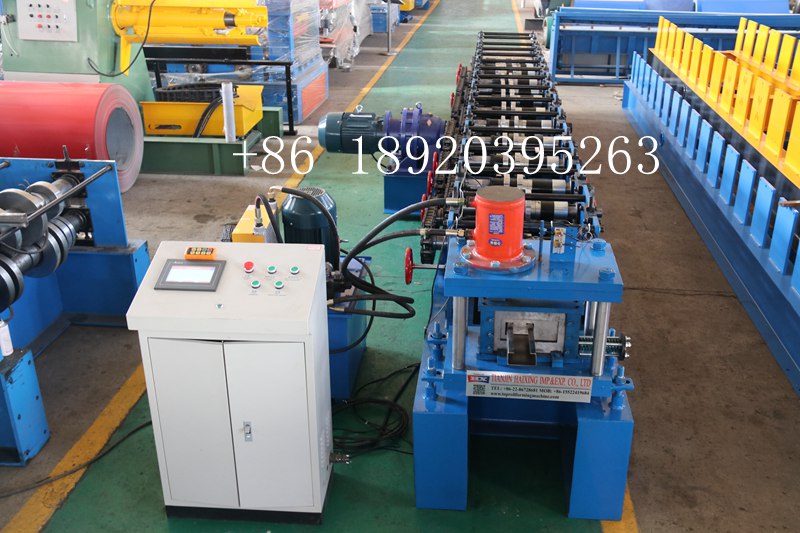

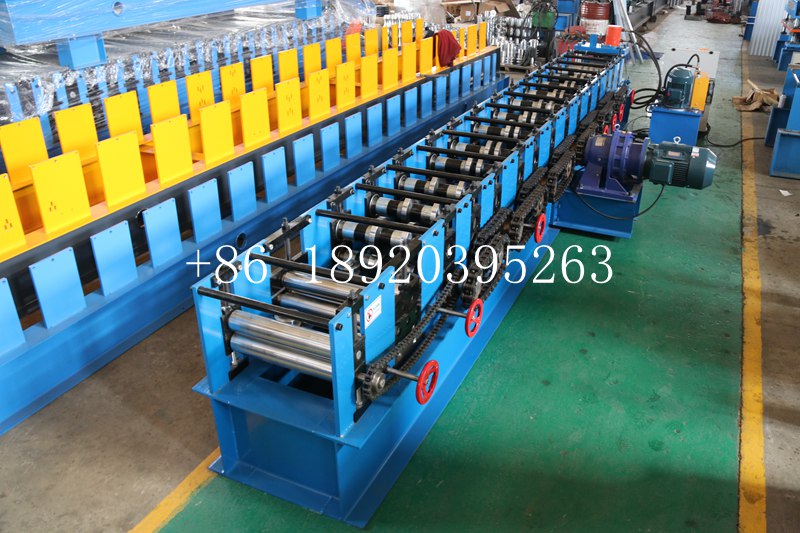

c-purlin roll forming machine

c-purlin roll forming machine

Model: HX- C purlin
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need

Description

c-purlin roll forming machine

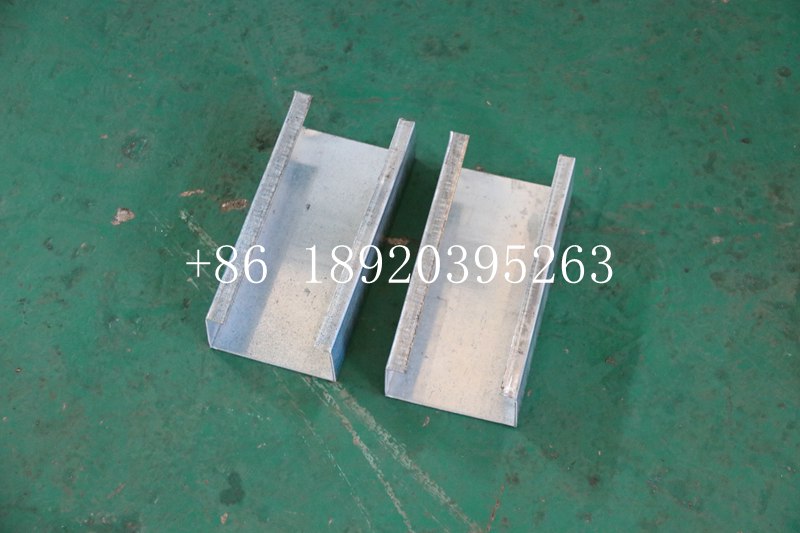

The c-purlin roll forming machine is a piece of equipment specially used to produce C-type purlins. Its advantages are:

1.Save human resources: Automated production reduces dependence on labor and reduces labor costs.

2.Multi-lane production: Some machines may support multi-lane production, capable of producing multiple C-shaped purlins simultaneously.

No.                                                       Main Parameter of c-purlin roll forming machine
1Suitable to processGalvanized steel strips
2Rollers16rollers+leveling axis 4rollers
3Dimensions10500*1500*1600mm
4Main Motor size11Kw*2
5Hydraulic pump5.5Kw
6Thickness of the plate1.5-3.0mm
7Productivity10-15m/min
8Material of the cutting bladeCr12Mov,Quenched treatment 58℃-60℃
9Diameter of the rollerΦ85mm
10WeightAbout 8.5T
11Main structure of the machine450H steel
12Processing precisionWithin 1.0mm
13Side panel of machine20mm
14Chain Wheel and Cycle Chain2Inch
15Voltage380V 50HZ 3Phase
16Control systemPLC control (Delta)
17Cut off the wayHydraulic torsion shear
18Drive modeMotor driver
19Hydraulic station pumpGear pump
20Touch screenDelta
21Rolling materialsGcr15
22Length Tolerance±2mm

c-purlin roll forming machine after-sales services:

1. Warranty: One year and we will provide technical support for the life of the equipment.
2. Delivery period: Within 25-45 days after receipt of the deposit of advance payment
3.Warranty period: 24-month free service / paid service for the whole life of the machine
4. Installation and training
If buyers visit our factory and review the machine, we will teach you how to install and use the machine and also train your workers / technicians face to face.

c-purlin roll forming machine packing and shipping :

1. C-purlin roll forming machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.

our other product :

We have roof and wall roll forming machine, light steel keel roll forming machine,purlin roll forming machine,ridge cap roll forming machine,floor deck roll forming machine,leveling and slitting production line,bending machine,shearing machine,decoiler machine,stacker,downspout & rain gutter roll forming machine,shutter door roll forming machine,door frame roll forming machine,window frame machine,embossing machine etc.
