c purlin machine china
Model: HX- C purlin
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

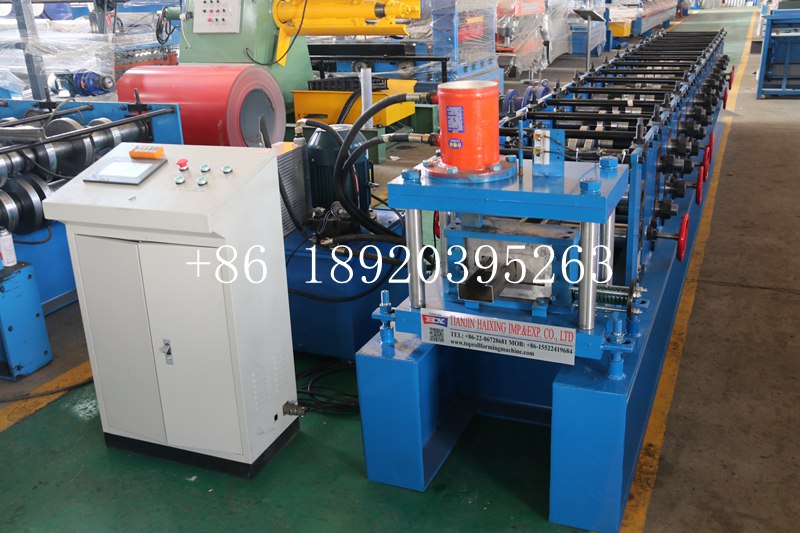

c purlin machine china

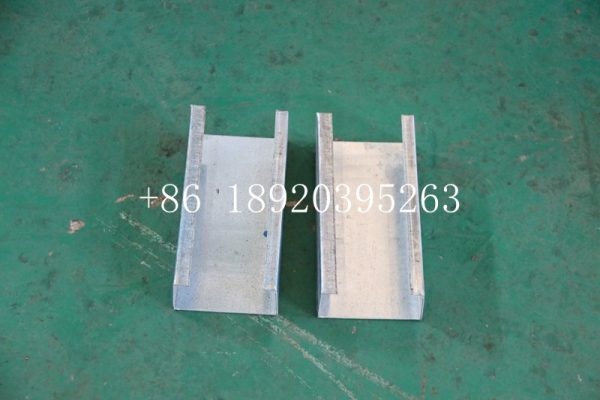

The c purlin machine china is a piece of equipment specially used to produce C-type purlins. Its advantages are：
1.Reduced scrap: The machine may be equipped with an optimized design that reduces the generation of scrap.
2.Intelligent energy-saving mode: It has intelligent energy-saving mode, which effectively reduces energy consumption.
| No. | Main Parameter of automatic c purlin machine china | |
| 1 | Suitable to process | Galvanized steel strips |

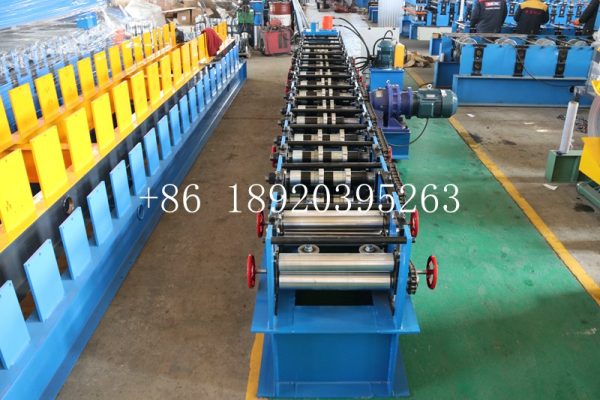

| 2 | Rollers | 16rollers+leveling axis 4rollers |
| 3 | Dimensions | 10500*1500*1600mm |
| 4 | Main Motor size | 11Kw*2 |
| 5 | Hydraulic pump | 5.5Kw |
| 6 | Thickness of the plate | 1.5-3.0mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12Mov,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 8.5T |
| 11 | Main structure of the machine | 450H steel |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 2Inch |
| 15 | Voltage | 380V 50HZ 3Phase |
| 16 | Control system | PLC control (Delta) |

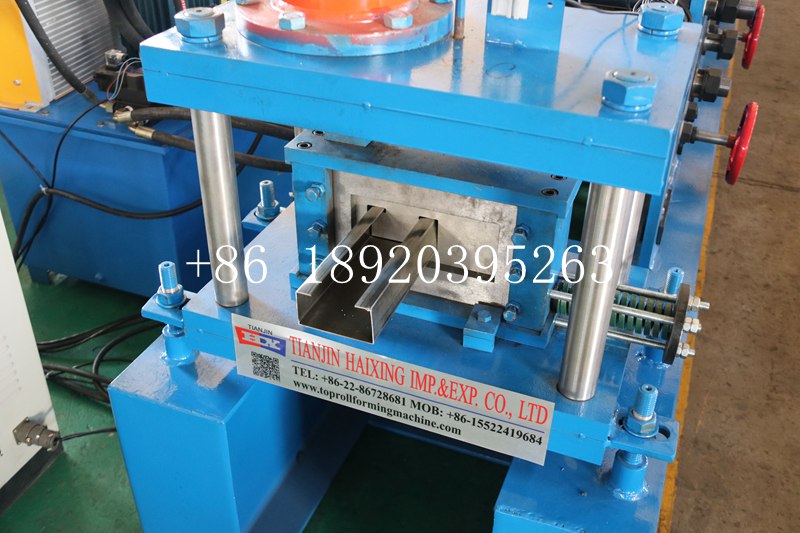

| 17 | Cut off the way | Hydraulic torsion shear |
| 18 | Drive mode | Motor driver |
| 19 | Hydraulic station pump | Gear pump |
| 20 | Touch screen | Delta |
| 21 | Rolling materials | Gcr15 |
| 22 | Length Tolerance | ±2mm |
c purlin machine china after-sales services:
1. Warranty: One year and we will provide technical support for the life of the equipment.
2. Delivery period: Within 25-45 days after receipt of the deposit of advance payment
3.Warranty period: 24-month free service / paid service for the whole life of the machine
4. Installation and training
If buyers visit our factory and review the machine, we will teach you how to install and use the machine and also train your workers / technicians face to face.
c purlin machine china packing and shipping ：
1.C purlin machine china and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
our other product :
We have roof and wall roll forming machine, light steel keel roll forming machine,purlin roll forming machine,ridge cap roll forming machine,floor deck roll forming machine,leveling and slitting production line,bending machine,shearing machine,decoiler machine,stacker,downspout & rain gutter roll forming machine,shutter door roll forming machine,door frame roll forming machine,window frame machine,embossing machine etc.
