Standing seam metal roof machine
Model: HX- Standing seam metal roof machine
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

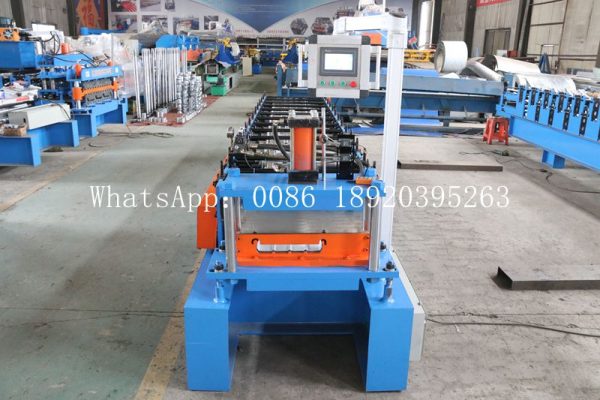

Standing seam metal roof machine
Standing seam metal roof machine material is beautiful, easy to use, and the surface is fluorocarbon sprayed and painted.
The on-site press production method is highly flexible, which is convenient for adjusting production parameters according to the construction site conditions, which is conducive to shortening the production cycle and ensuring product quality.
No. | Standing seam metal roof machine | |
1 | Suitable to process | Color alu-zinc steel coil/Aluminium Coil |
2 | Roller | 16Rows |
3 | Dimensions | 7.0*1.3*1.55m |
4 | Motor Power | 7.5Kw |
5 | Pump Station Motor | 5.5Kw.Lichao Brand |
6 | Thickness of the plate | 0.6-1.2mm |
7 | Productivity | 10-15m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter of the roller | Φ90mm |
10 | Weight | About 4800kgs |
11 | Main structure of the machine | 400H beams |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 20mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer’s need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Motor driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
Standing seam metal roof machine Installation and training:
a.If buyers visit our factory and check the double layer galvanized tile roofing sheet making machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Standing seam metal roof machine packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
