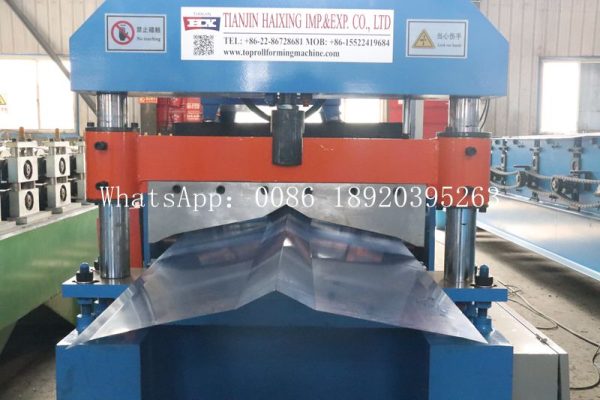

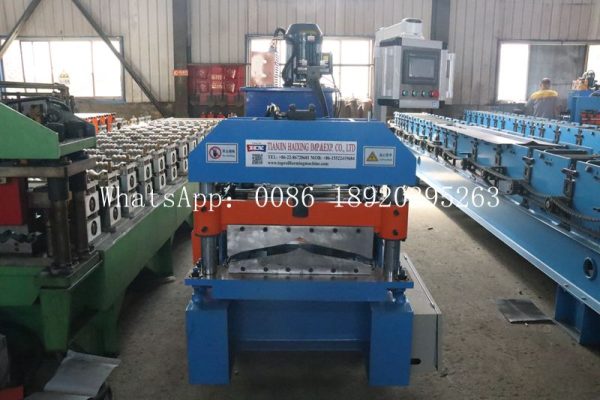

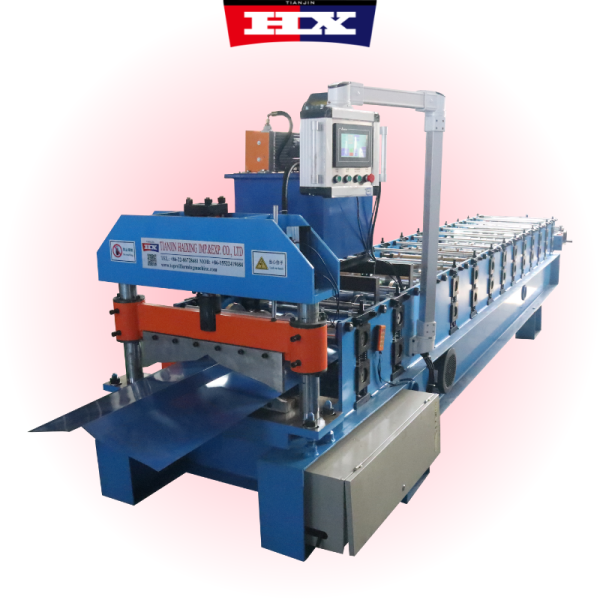

Ridge cap forming machine

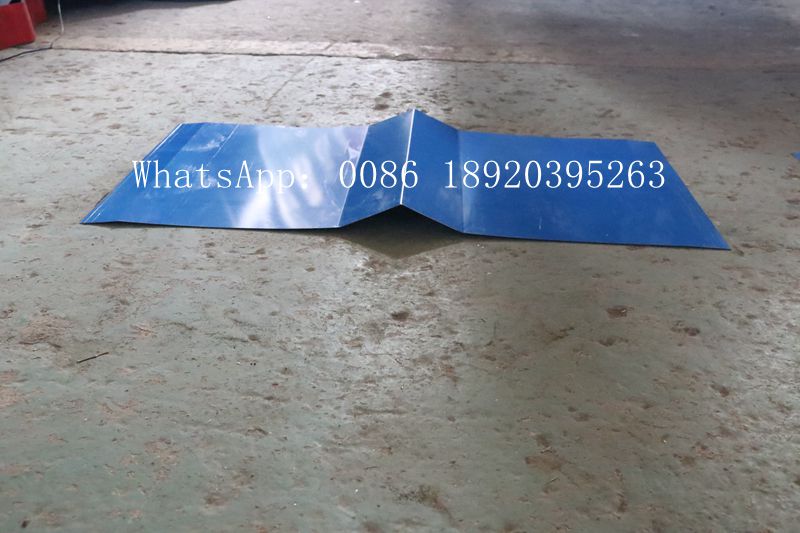

The finished products of ridge cap forming machine are placed on the roofs of steel structure factories, steel structure houses, steel structure warehouses, color steel plate mobile houses and other color steel plate houses to cover the roofs. The material is the same as the roof panel.
The strong connection method can fully withstand the roof load; the unique air interlayer improves the thermal insulation performance; the waterproof groove of the tile itself has good waterproof characteristics, which is very suitable for light steel structure.
| No. | Ridge cap forming machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 12 Rows |
| 3 | Dimensions | 2.6*1.5*1.6m |
| 4 | Motor Power | 3Kw |
| 5 | Pump Station Motor | 3Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 3-5m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 3200kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Ridge cap forming machine after Sales Service：
- Installation and training:
a.If buyers visit our factory and check the stainless steel roll levelling machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
- After Service
a.One year guarantee for whole stainless steel roll levelling machine .
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in Two year.
