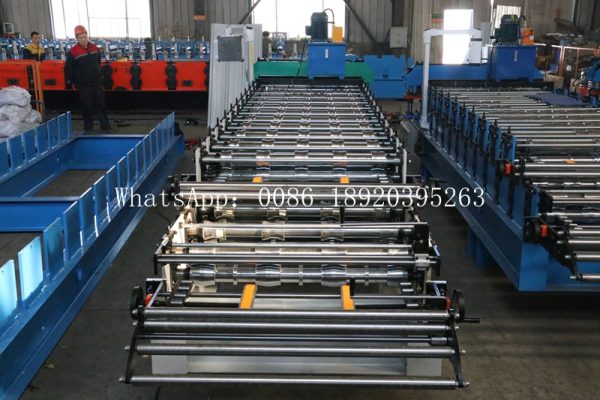

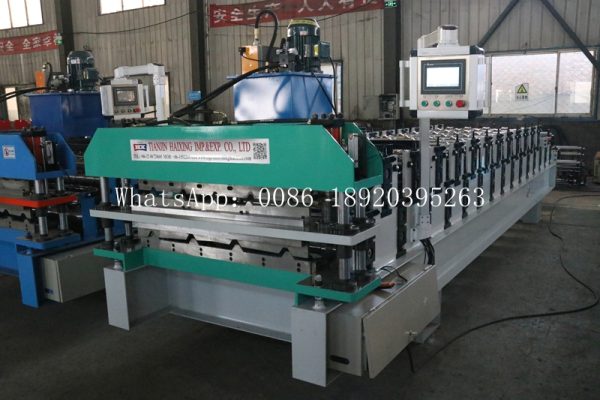

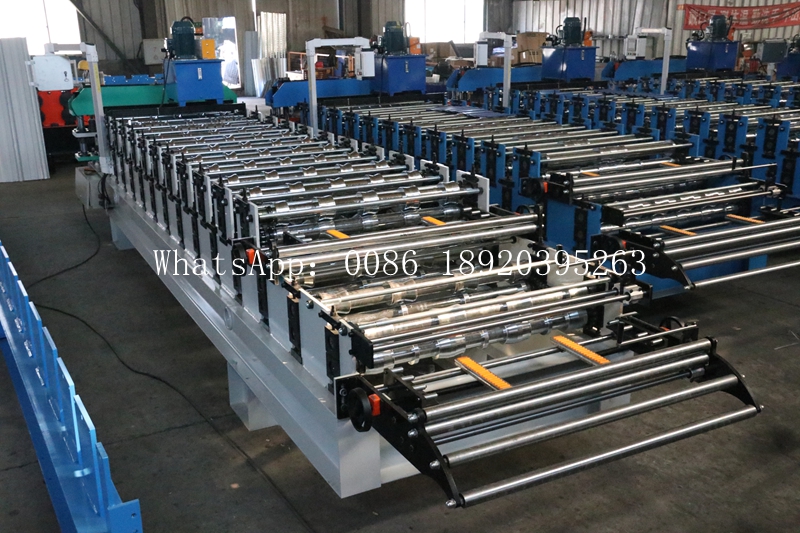

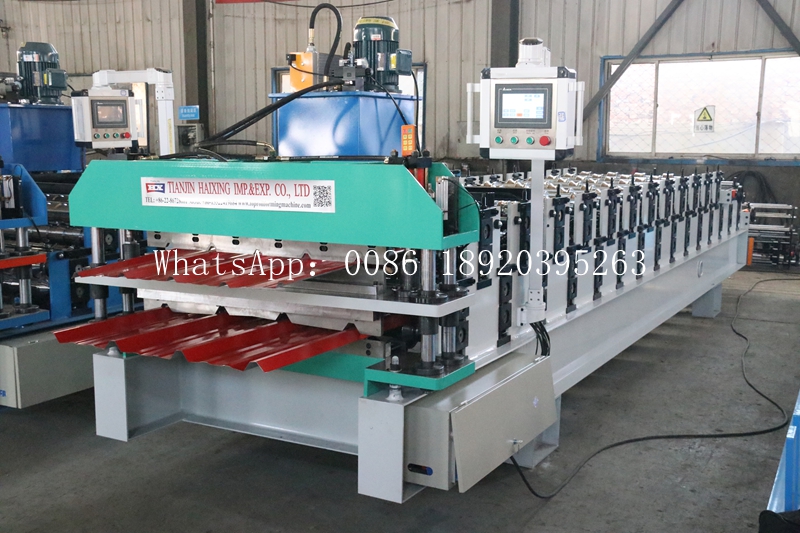

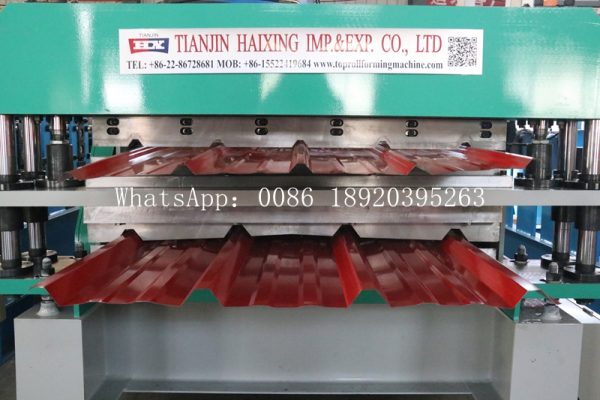

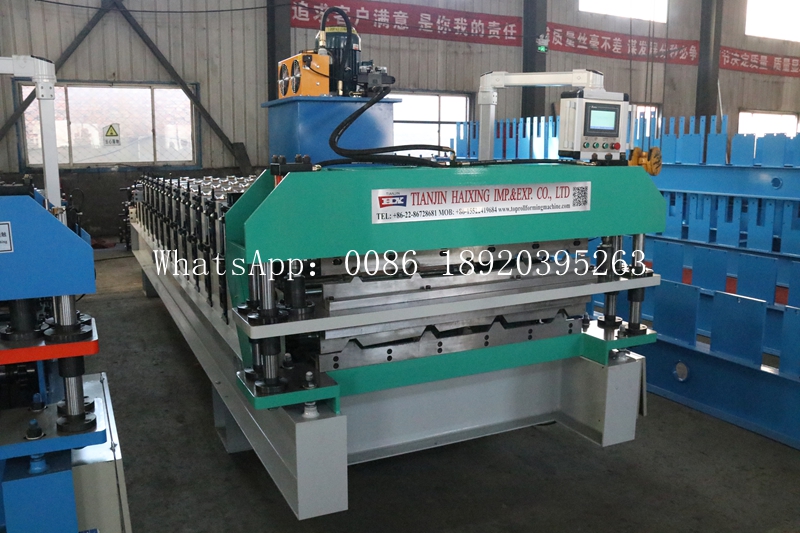

R panel roll forming machine
Model: HX- R panel roll forming machine
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description
Uses of R panel roll forming machine in the Construction Industry

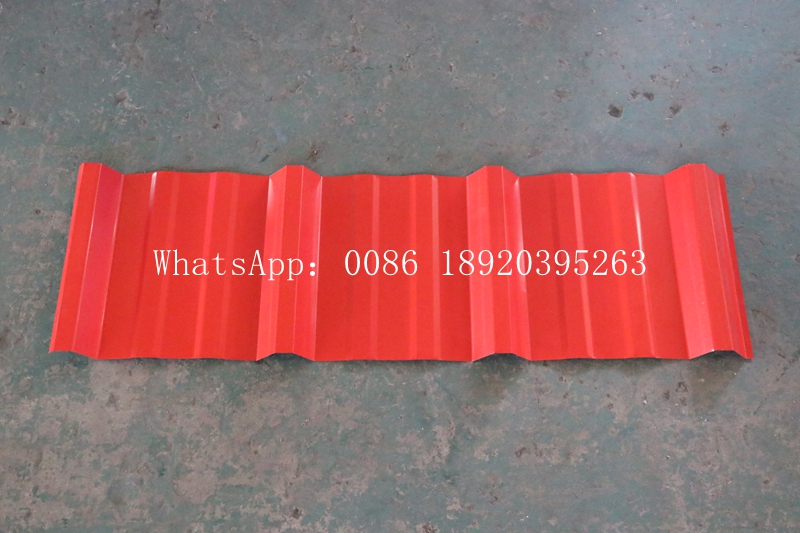

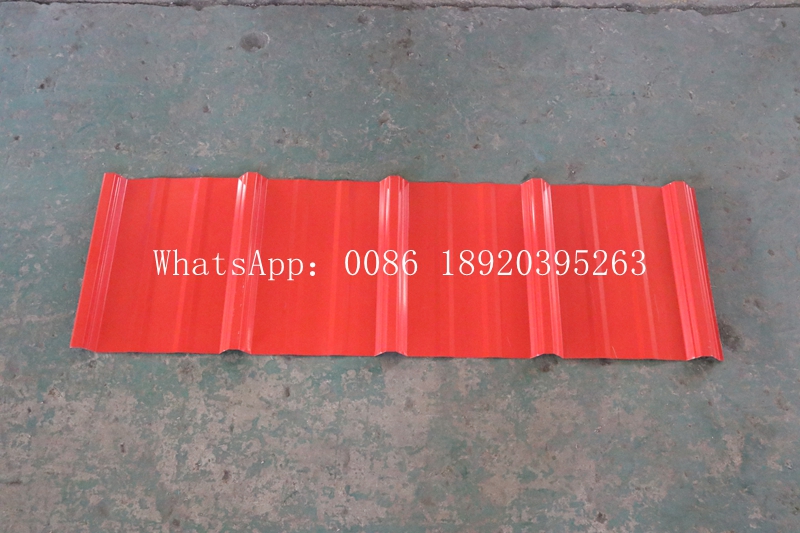

1. Roof Panel Production: R panel roll forming machine are widely used to produce color-coated steel tiles, corrugated tiles, trapezoidal tiles, and other materials for roof coverings in residences, factories, warehouses, and steel structures.
2. Wall Panel Manufacturing: Using different molds, r panel roll forming machine can produce metal sheet materials for wall cladding, enhancing the building’s appearance and protective properties.
Raw materials width | 1100mm |
Power | 5.5Kw |
Roll station number | 13-13 steps |
Thickness of the coil | 0.3-0.8mm |
Productivity | 10-15m/min |
Diameter of shaft | 70mm |
Main Shaft Material | 45# steel with finish turning |
Roller materials | 45# Forging Steel with Chromium Plate |
Machine Main Frame | 300-450 H beams |
Hydraulic pressure | 18-20Mpa |
Raw materials | PPGI PPGL GI GL |
R panel roll forming machine Installation and training:
a.If buyers visit our factory and check the double layer galvanized tile roofing sheet making machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
