door frame roll forming machine
Model: HX- Door Frame Machine
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

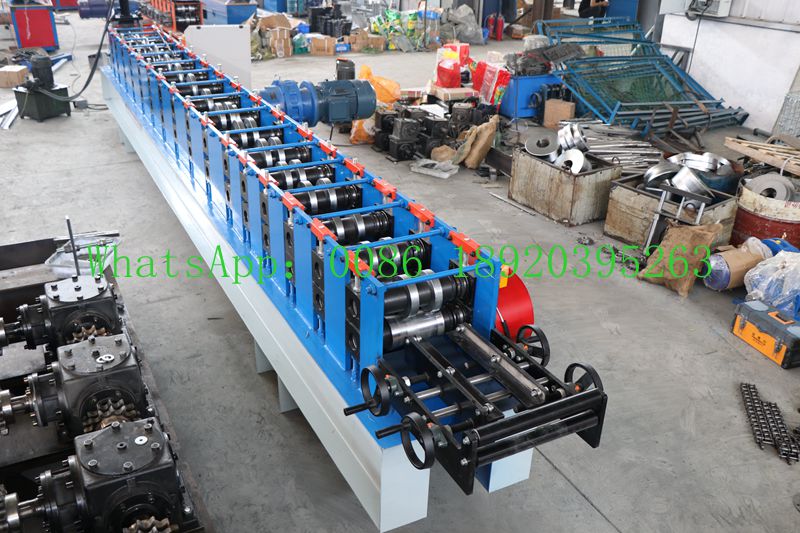

door frame roll forming machine

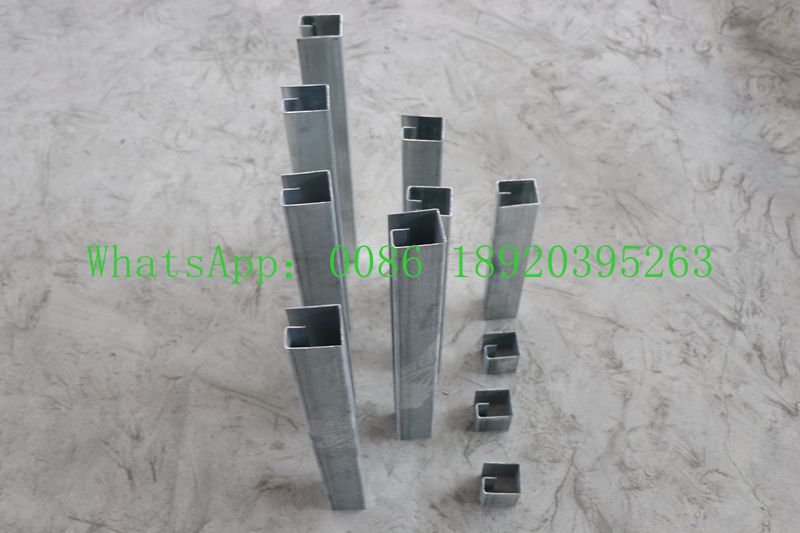

Door frame roll forming machine is a kind of equipment specially used for bending and processing steel plates, aluminum plates and other materials, mainly used for processing and manufacturing door frames. Door frame roll forming machine can produce door frames of various shapes, sizes and thicknesses.
1. Construction field: mainly used to manufacture building door frames, such as factory doors, warehouse doors, doors in public places, etc.
2. Home decoration: can also be used in the field of home decoration to process door frames of various styles and sizes, such as kitchen doors, bedroom doors, etc., to increase the beauty of the home.
| No. | Main Parameter of door frame roll forming machine | |
| 1 | Suitable to process | Galvanized steel strips |

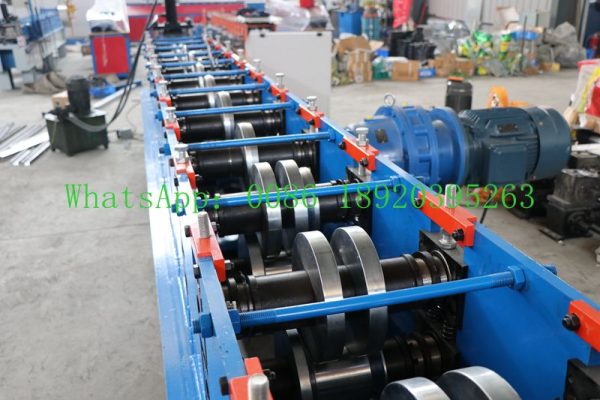

| 2 | Rollers | 16rollers+leveling axis 4rollers |
| 3 | Dimensions | 10500*1500*1600mm |
| 4 | Main Motor size | 11Kw*2 |
| 5 | Hydraulic pump | 5.5Kw |
| 6 | Thickness of the plate | 1.5-3.0mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12Mov,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 8.5T |
| 11 | Main structure of the machine | 450H steel |
| 12 | Processing precision | Within 2.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 2Inch |
| 15 | Voltage | 380V 50HZ 3Phase |
| 16 | Control system | PLC control (Delta) |

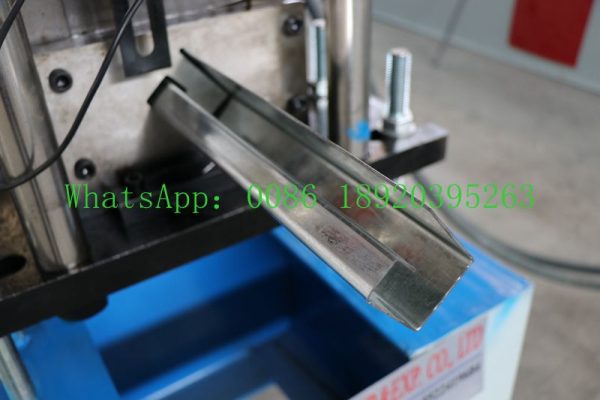

| 17 | Cut off the way | Hydraulic torsion shear |
| 18 | Drive mode | Motor driver |
| 19 | Hydraulic station pump | Gear pump |
| 20 | Touch screen | Delta |
| 21 | Rolling materials | Gcr15 |
| 22 | Length Tolerance | ±2mm |
door frame roll forming machine after-sales services:
1. Warranty: One year and we will provide technical support for the life of the equipment.
2. Delivery period: Within 25-45 days after receipt of the deposit of advance payment
3.Warranty period: 24-month free service / paid service for the whole life of the machine
4. Installation and training
If buyers visit our factory and review the machine, we will teach you how to install and use the machine and also train your workers / technicians face to face.
