Decking machine
Model: HX- Decking machine
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description

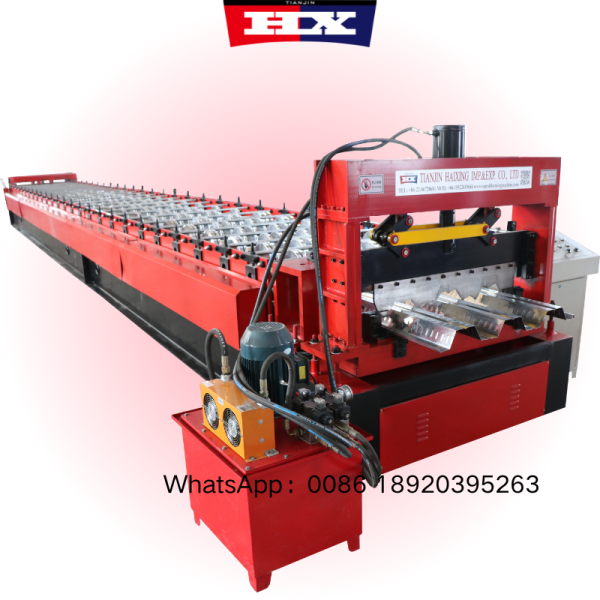

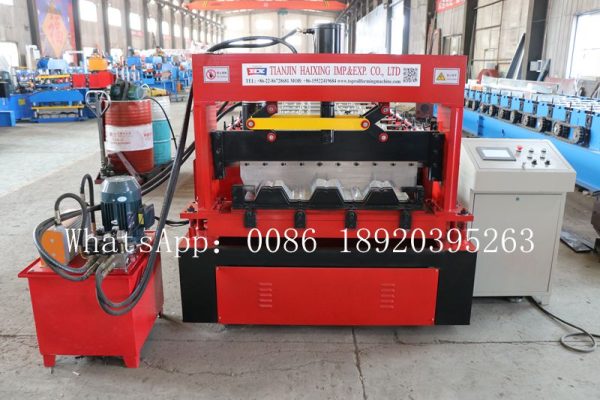

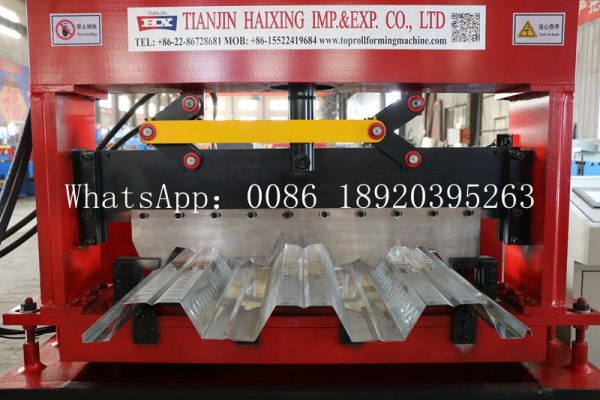

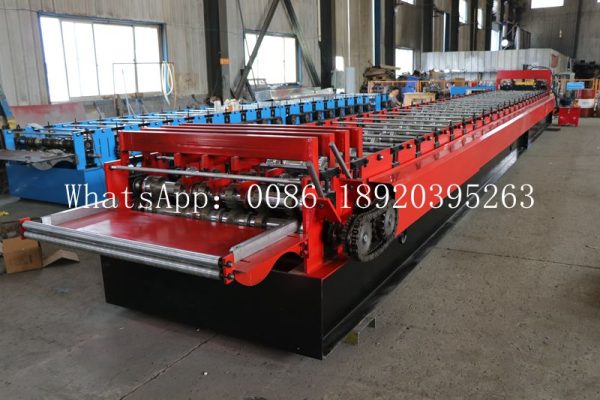

Decking machine

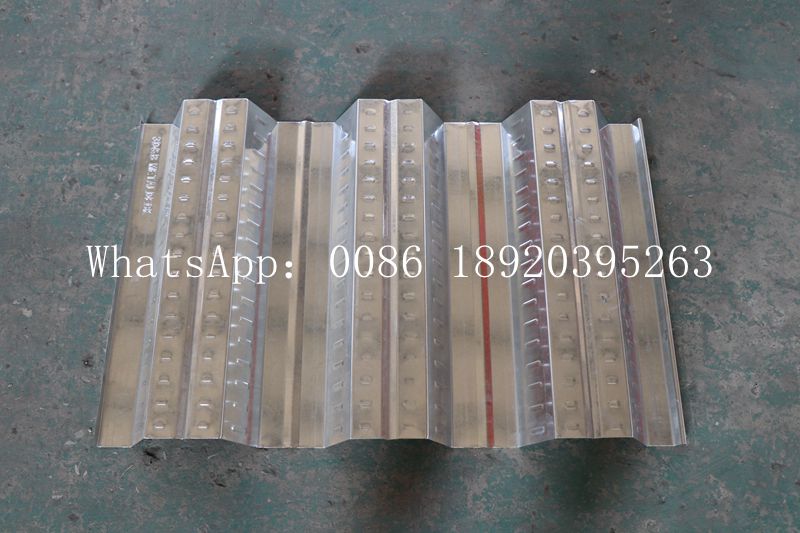

1: It can meet the requirements of rapid construction of the main steel structure, provide a firm working platform in a short time, and adopt multiple floors to lay corrugated steel plates and pour concrete slabs in layers.
2: During the use stage, the decking machine slab is used as the tensile reinforcement of the concrete floor slab, which also improves the rigidity of the floor slab and saves the amount of steel bars and concrete.
No. | Decking machine | |
1 | Suitable to process | Alu-zinc steel coil/Galvanized steel coil |
2 | Roller | 24rollers or according to final design |
3 | Dimensions | 12.5*1.8*2.0m |
4 | Motor Power | 15Kw*2 |
5 | Pump Station Motor | 4Kw.Lichao Brand |
6 | Thickness of the plate | 0.5-1.2mm |
7 | Productivity | 10-15m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter of the roller | Φ90mm |
10 | Weight | About 10500kgs |
11 | Main structure of the machine | 450 H Beams |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 20 mm |
14 | Chain Wheel and Cycle Chain | 2 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer’s need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Gear driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
Decking machine Installation and training:
a.If buyers visit our factory and check the double layer galvanized tile roofing sheet making machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Decking machine packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
