Aluminium machine dura fence
Model: HX- Aluminium machine dura fence
WhatsApp：+86 18920395263
Payment: TT,30% deposit,70% balance before shipment
Voltage: 380V 50HZ 3Phase or according to customer’s need
- Description
- Inquiry
Description
Aluminium machine dura fence

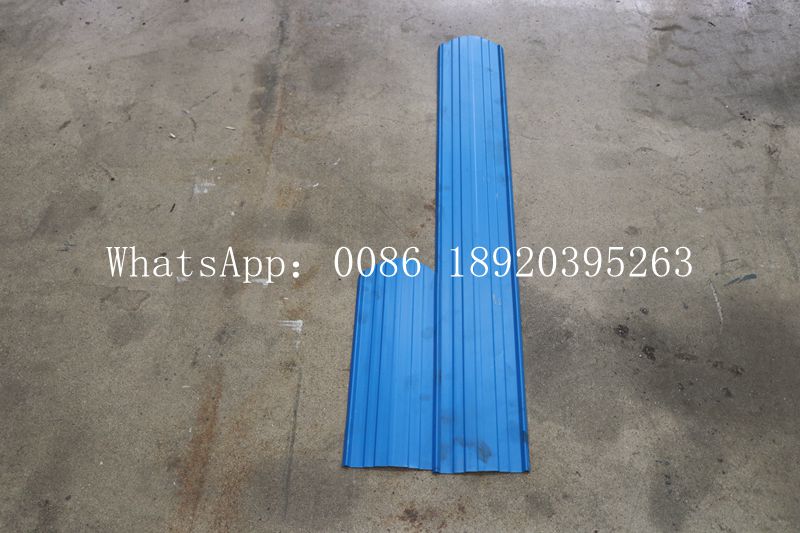

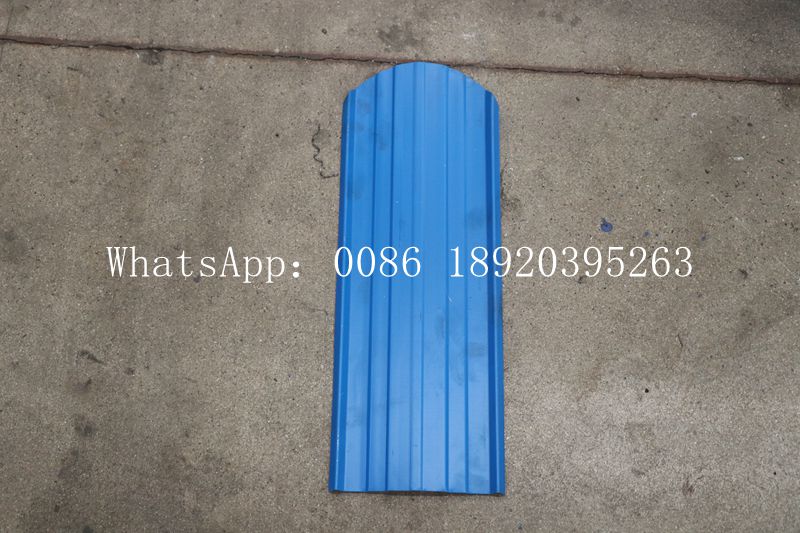

This aluminium machine dura fence is used to roll flat color steel plates into civil fences through cold bending technology. This machine is very popular for its production efficiency.
The production length can be customized according to the user’s requirements. The production speed can reach up to 15m/min. The machine is small and light, which is convenient for transportation.
No. | Aluminium machine dura fence | |
1 | Suitable to process | Color alu-zinc steel strips |
2 | Roller | 15 Rows plus leveling device |
3 | Dimensions | 5.8*1*1.5m |
4 | Motor Power | 3Kw |
5 | Pump Station Motor | 4Kw.Lichao Brand |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 10-15m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter of the roller | Φ70mm |
10 | Weight | About 2600kgs |
11 | Main structure of the machine | Square steel frame |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 16mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer’s need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Gear driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
Aluminium machine dura fence Installation and training:
a.If buyers visit our factory and check the double layer galvanized tile roofing sheet making machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Aluminium machine dura fence packing and shipping ：
1. Machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
